Product Details:
|
| Model Number: | TPGT 160402 | Advantages: | ·High Quality ·Low Cost ·Factory Direct Supply |
|---|---|---|---|
| Service: | · Online Store Service · Local Distributor Support · Technical Support | Product Brand: | WORLDIA |
| Product Family: | ManaNova | Material: | PCD+Carbide |
| PCD Grade: | MND10 | Application: | Machining Of Non-ferrous Materials |
| High Light: | TPGT Carbide PCD Cutting Inserts,TPGT PCD Cutting Inserts,ManaNova carbide cutting inserts |
||

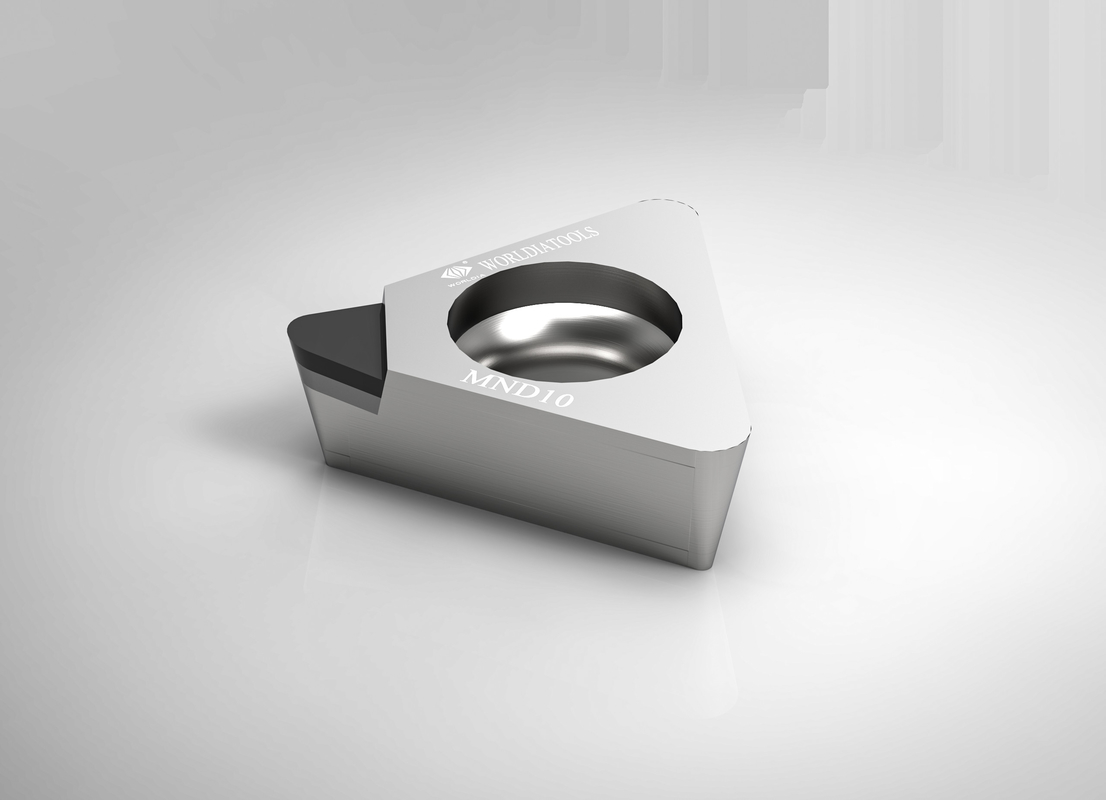

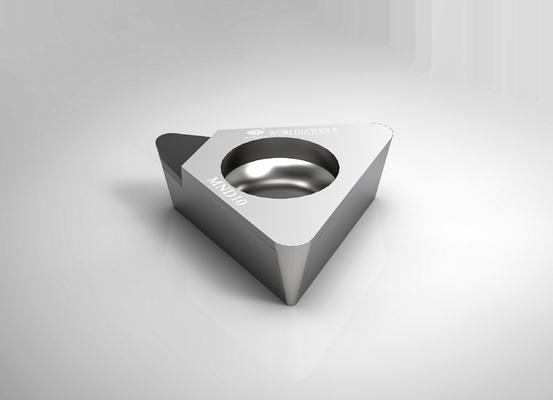

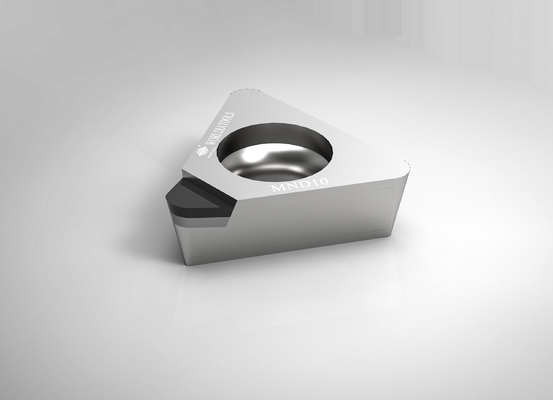

TPGT 160402 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
WORLDIA:
With high-quality products and professional technical support, we are honored to service the top
manufacturers in automotive, new energy, wind power, engineering machinery industries, etc.
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose
PCD and PCBN materials to provide the universal cutting effect.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide fast
and efficient service for domestic and foreign customers to meet their demand for standardized and universalized tools.
Main products:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
Especially coated PCBN insert is suitable for continuous to the heavy interrupted cutting of hardened steel
and has excellent universal performance.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal
materials. The four edge types are standard, chip breaker, full length, and full face.
Advantages:
· Universal
· Easy choice
· Fast delivery
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TPGT 22.50.5 | TPGT 110302 | 1N | 6.35 | 3.18 | 0.2 | 3.3 | 2.5 | √ |
| TPGT 22.51 | TPGT 110304 | 1N | 6.35 | 3.18 | 0.4 | 3.3 | 2.5 | √ |
| TPGT 22.52 | TPGT 110308 | 1N | 6.35 | 3.18 | 0.8 | 3.3 | 2.5 | √ |
| TPGT 330.5 | TPGT 160402 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 | √ |
| TPGT 331 | TPGT 160404 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
