High Temperature High Speed Solid Carbide Tools Composite Materials Cutting End Mill

High Temperature High Speed Solid Carbide Tools Composite Materials Cutting End Mill
High Temperature High Speed Solid Carbide Tools Composite Materials Cutting End Mill
High Temperature High Speed Solid Carbide Tools Composite Materials Cutting End Mill High Temperature High Speed Solid Carbide Tools Composite Materials Cutting End Mill High Temperature High Speed Solid Carbide Tools Composite Materials Cutting End Mill

Large Image :  High Temperature High Speed Solid Carbide Tools Composite Materials Cutting End Mill

Product Details:
Place of Origin: Beijing, China
Brand Name: Worldia
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 2 Piece
Price: $75/Piece
Packaging Details: 2 PCs/Blue rose box
Delivery Time: 7days
Supply Ability: 20000PCS（monthly）
Contact Now

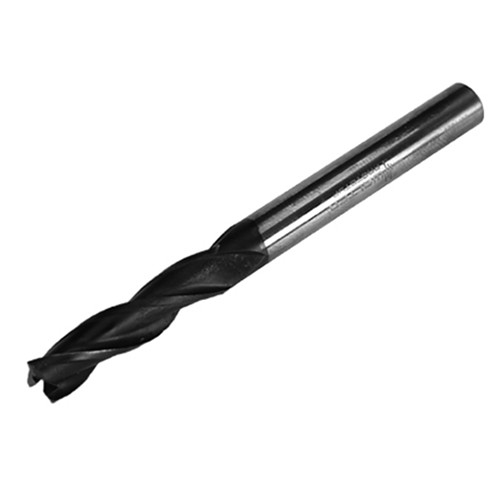

High Temperature High Speed Solid Carbide Tools Composite Materials Cutting End Mill

Description
Product Brand: WORLDIA Name: Carbide End Mill-R
Type: End Mill Fillet R: 0.4/0.7/1
Blade Length: 12/18/25 Application: Composite Materials Cutting
Highlight:

High Speed Solid Carbide Tools

,

High Temperature Solid Carbide Tools

,

Composite Materials Cutting End Mill

Carbide End Mill-R Solid Carbide Cutting Tools for composite materials cutting



DESCRIPTION

Tools used to process composite materials
Products Mainly include Diamond-coated Multi-flute End Mill; Diamond-coated Cross-edge End mill; Diamond-coated Herringbone End Mill; Front Geometry Drill, Three-point Drill, Diamond-coated Drill-ing and Countersink integration tools, etc.
Application
  • Aircraft composite material
  • Composite material cover of automotive engine
  • Phone holder
  • etc



Solid carbide cutting tools

Adopting high-quality hard alloy, it can complete excellent cutting work under continuous
high temperature and high-speed working environment.




Materials suitable for processing Carbon steel, stainless steel, cast iron, titanium alloy, aluminum alloy, high temperature alloy, non-metallic materials, etc.
Milling form Side milling, slot milling, ramp milling, cavity milling, etc.
Blade diameter dc (mm) 3～32
R value 0.2～6
Blade length (l mm) 5～100
Total length L (mm) 38～200
Shank diameter Ds (mm) 4～32
Handle form Cylindrical shank, side fifixed shank
Number of blades 2 edge, 3 edge, 4 edge, 5 edge, 6 edge, 8 edge
coating TiN, TiAlN, AlCrN, AlTiN-based, DLC, diamond coating, etc.
other The blade can be designed to shrink, avoid air, taper, etc.

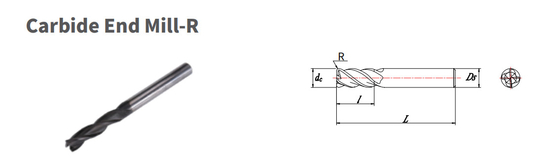

SPECIFICATION

High Temperature High Speed Solid Carbide Tools Composite Materials Cutting End Mill 0

Blade diameter
dc/mm		 Fillet
R		 Blade length
I/mm		 Total length
L/mm		 Shank diameter
Ds/mm		 Coating type
4 0.4 12 62 4 None/Diamond
4 0.7 12 62 4 None/Diamond
6 0.4 18 62 6 None/Diamond
6 1 18 62 6 None/Diamond
6.35 0.4 18 62 6.35 None/Diamond
6.35 1 18 62 6.35 None/Diamond
8 0.4 25 78 8 None/Diamond
8 1 25 78 8 None/Diamond
9.525 0.4 25 78 9.525 None/Diamond
9.525 1 25 78 9.525 None/Diamond
10 0.4 25 78 10 None/Diamond
10 1 25 78 10 None/Diamond
12 0.4 25 78 12 None/Diamond
12 1 25 78 12 None/Diamond
12.7 0.4 25 78 12.7 None/Diamond
12.7 1 25 78 12.7 None/Diamond



CFRP,CFRP/AI,CFRP/Ti
Mill method Mill Slot(ae=dc,ap≦dc) Copy Milling(ae≦0.5dc,ap≦1.5dc) High speed milling(ae≦0.05dc,ap≦2dc)
  Vc=120m/min Vc=150m/min Vc=250m/min
dc(mm) n(rpm) Fr(mm/r) n(rpm) Fr(mm/r) n(rpm) Fr(mm/r)
1 38217 0.035 47771 0.035 79618 0.077
1.2 31847 0.04 39809 0.04 66348 0.088
1.5 25478 0.004 31847 0.044 53079 0.097
1.8 21231 0.004 26539 0.044 44232 0.097
2 19108 0.045 23885 0.045 39809 0.099
2.5 15287 0.05 19108 0.05 31847 0.11
3 12739 0.06 15924 0.06 26539 0.132
4 9554 0.08 11943 0.08 19904 0.176
6 6369 0.11 7962 0.11 13270 0.242
6.35 6018 0.12 7523 0.12 12538 0.264
8 4777 0.23 5971 0.23 9952 0.506
9.525 4012 0.31 5015 0.31 8359 0.682
10 3822 0.35 4777 0.35 7962 0.77
12 3185 0.44 3981 0.44 6635 0.968
12.7 3009 0.48 3761 0.48 6269 1.056
GFRP,GFRP/Al,GFRP/Ti
Mill method Mill Slot(ae=dc,ap≦dc) Copy Milling(ae≦0.5dc,ap≦1.5dc) High speed milling(ae≦0.05dc,ap≦2dc)
  Vc=120m/min Vc=150m/min Vc=250m/min
dc(mm) n(rpm) Fr(mm/r) n(rpm) Fr(mm/r) n(rpm) Fr(mm/r)
1 31847 0.035 38217 0.035 63694 0.077
1.2 26539 0.04 31847 0.04 53079 0.088
1.5 21231 0.044 25478 0.044 42463 0.097
1.8 17693 0.044 21231 0.044 35386 0.097
2 15924 0.045 19108 0.045 31847 0.099
2.5 12739 0.05 15287 0.05 25478 0.11
3 10616 0.06 12739 0.06 21231 0.132
4 7962 0.08 9554 0.08 15924 0.176
6 5308 0.11 6369 0.11 10616 0.242
6.35 5015 0.12 6018 0.12 10031 0.264
8 3981 0.23 4777 0.23 7962 0.506
9.525 3344 0.31 4012 0.31 6687 0.682
10 3185 0.35 3822 0.35 6369 0.77
12 2654 0.44 3185 0.44 5308 0.968
12.7 2508 0.48 3009 0.48 5015 1.056



About us:

High Temperature High Speed Solid Carbide Tools Composite Materials Cutting End Mill 1

Tag:

Cross Edge solid carbide end mill,

Roughing End Mill For Phone Holder,

dia 12.7mm solid carbide end mill cutter
