Product Details:
|
| Coating: | PVD | Material: | CT5020/CT5025/CT5035/CT020K/CT3010 |
|---|---|---|---|
| F(mm/rev): | 0.20-2.70 | Procuct Brand: | Worldia |
| Product Name: | PVD Coating Carbide Insert | Application: | Steel, Stainless Steel, Cast Iron, Aluminum Alloy, High Temperature Materials, Hardened Steel |
| Highlight: | RPMW 1003MO CNC Milling Insert,2.70mm/Rev CNC Milling Insert,0.20mm/Rev carbide inserts for hardened steel |
||

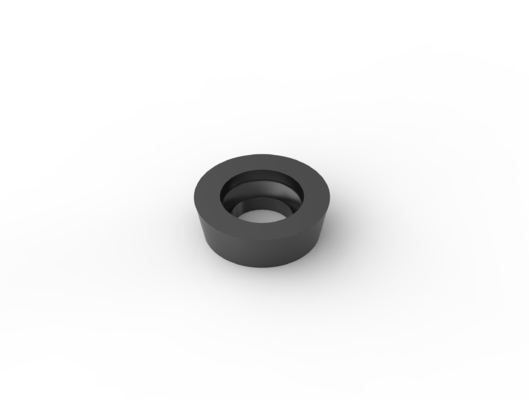

RPMW 1003MO PVD Coating carbide insert for CNC milling, grooving, and parting.
INTRODUCTION
Worldia (Jiaxing) Cemented Carbide CNC Tools Co., Ltd. was established in Jiaxing city in 2021.
It is the wholly-owned subsidiary of Beijing Worldia Diamond Tools Co., Ltd. (Stock code:688028) that is one
of the first companies to enter the SSE STAR MARKET.
Carbide Inserts, Cermet Inserts, and Carbide Bars are the main products.
PVD Coating carbide milling brand
| Material | ISO | Feature |
| CT5020 | M15-M30 | Super micron substrate with better wear resistance Suit for steel, stainless steel, and high-temperature alloy under the stable cutting condition that on common to semi-finish Perghardened steel on semi-finish |
| P15-P30 | ||
| S15-S30 | ||
| CT5025 | M15-M35 | The first choice of universal machining Steel, stainless steel, and high-temperature alloy on common machining under the stable condition |
| P15-P35 | ||
| S15-S35 | ||
| CT5035 | M25-M45 | High toughness substrate, suit for interrupted cutting at the low condition Stainless steel, steel on the interrupted cutting |
| P25-P45 | ||
| CT020K | K10-K30 | Specialized for cast iron on milling, grey cast iron, and ductile cast iron on universal machining |
| CT3010 | S05-S25 | Super micron substrate, steel, and hardened steel at a high-speed cutting |
| H05-H25 |

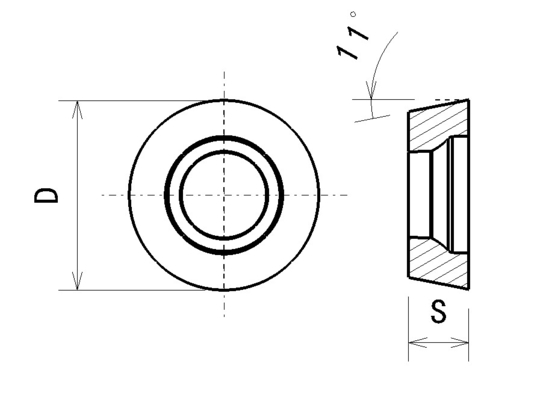

SPECIFICATION
| Type | Cutting Data | ||
| F(mm/rev) | Ap(mm) | ||
| RPMW | 1003MO | 0.20-0.70 | 0.20-5.00 |
| 10T3MO | 0.20-0.70 | 0.20-5.00 | |
| 1204MO | 0.30-0.85 | 0.20-6.00 | |
Cutting case
| Brand | Worldia | Other brands |
| Type | CMGDN 400-030 C CT5025 | DGN 4003 **** |
| Workpiece | 4130 | 4130 |
| Machining way | Grooving | Grooving |
| Cutting speed | Vc=150m/min | Vc=150m/min |
| Feed | fn=0.12mm/r | fn=0.12mm/r |
| Deep | ap=8mm | ap=8mm |
| Cooling | Out cooling(oil) | Out cooling(oil) |
| Life | 60min | 60min |
