Product Details:
|
| Model Number: | RDMT 1204MO-TM | Color: | Black |
|---|---|---|---|
| Coating: | PVD | Material: | CT5020/CT5025/CT5035/CT020K/CT3010 |
| Product Name: | PVD Coating Carbide Insert | Application: | Steel, Stainless Steel, Cast Iron, Aluminum Alloy, High Temperature Materials, Hardened Steel |
| Highlight: | RDMT 1204MO-TM Carbide Inserts,ODM Carbide Inserts,RDMT CNC Milling Inserts |
||

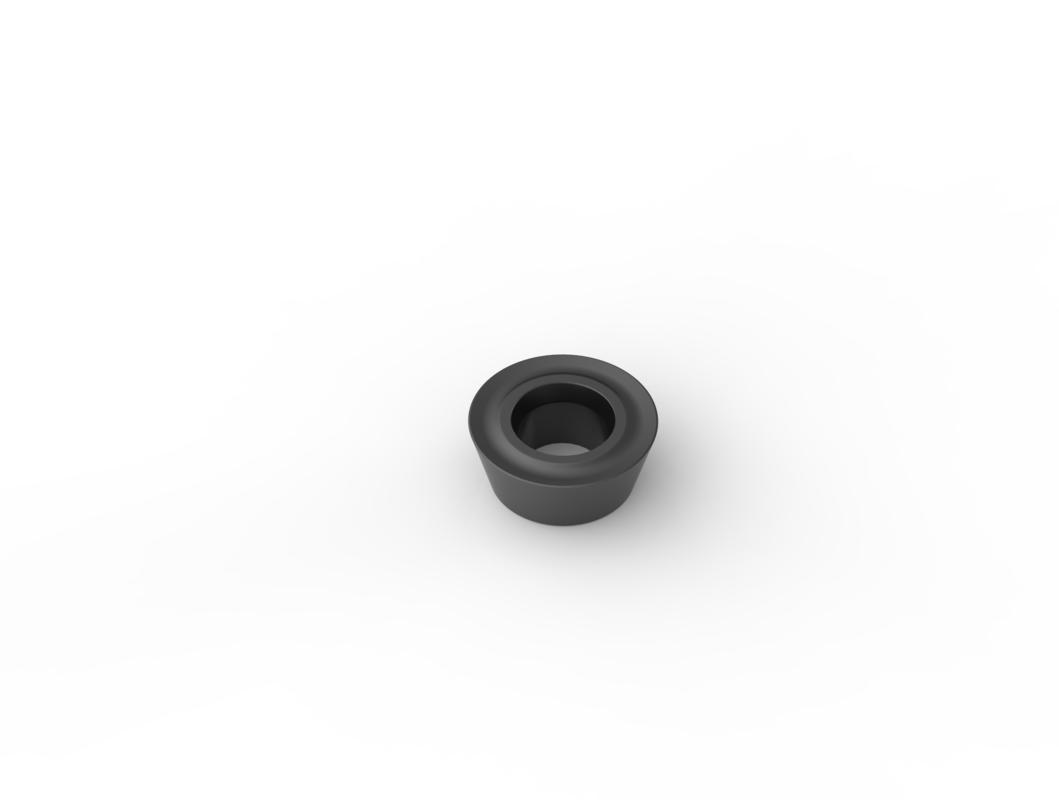

RPMT 1204MO-MM PVD Coating carbide insert for CNC milling processing
INTRODUCTION
“CuttingMore” is the main brand of the company, aiming to speed up the circulation of a full range of precision
CNC tools in the application market. In the future, more new products and professional technical
services will be launched, and the company plans the domestic and foreign markets simultaneously.
PVD Coating carbide milling brand
| Material | ISO | Feature |
| CT5020 | M15-M30 | Super micron substrate with better wear resistance Suit for steel, stainless steel, and high-temperature alloy under the stable cutting condition that on common to semi-finish Perghardened steel on semi-finish |
| P15-P30 | ||
| S15-S30 | ||
| CT5025 | M15-M35 | The first choice of universal machining Steel, stainless steel, and high-temperature alloy on common machining under the stable condition |
| P15-P35 | ||
| S15-S35 | ||
| CT5035 | M25-M45 | High toughness substrate, suit for interrupted cutting at the low condition Stainless steel, steel on the interrupted cutting |
| P25-P45 | ||
| CT020K | K10-K30 | Specialized for cast iron on milling, grey cast iron, and ductile cast iron on universal machining |
| CT3010 | S05-S25 | Super micron substrate, steel, and hardened steel at a high-speed cutting |
| H05-H25 |

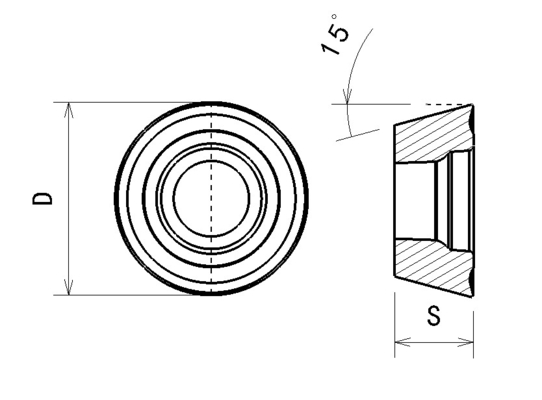

SPECIFICATION
| Type | Cutting Data | ||
| F(mm/rev) | Ap(mm) | ||
| RDMT | 0803MO-TM | 0.10-0.60 | 0.20-4.00 |
| 10T3MO-TM | 0.20-0.70 | 0.20-5.00 | |
| 1204MO-TM | 0.25-0.80 | 0.25-6.00 | |
| 1605MO-TM | 0.30-1.10 | 0.30-8.00 | |
Cutting case
| Brand | Worldia | Other brands |
| Type | CMGDN 400-030 C CT5025 | DGN 4003 **** |
| Workpiece | 4130 | 4130 |
| Machining way | Grooving | Grooving |
| Cutting speed | Vc=150m/min | Vc=150m/min |
| Feed | fn=0.12mm/r | fn=0.12mm/r |
| Deep | ap=8mm | ap=8mm |
| Cooling | Out cooling(oil) | Out cooling(oil) |
| Life | 60min | 60min |
