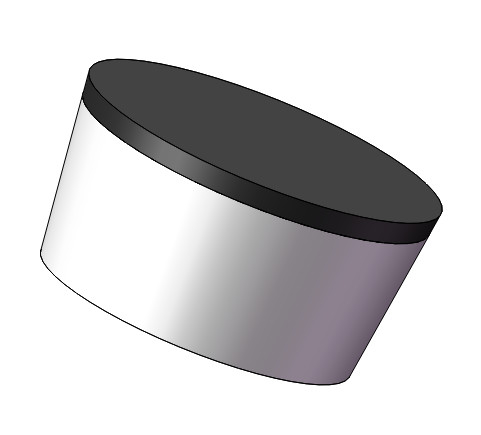

Rcmn Round Carbide Insert , Pcd Insert For Aluminum

RCMN round PCD cutting insert blade tool HRA85 for CNC caribe steel rolls turning

Round PCD Insert----APPLICATION

 For carbide rolls and other composite rolls with a hardness above HRA85,
 PCD round blades can be used to process external and annular grooves.

  Processed workpiece:

Round PCD Insert----ADVANTAGES

Round PCD Insert----SPECIFICATION

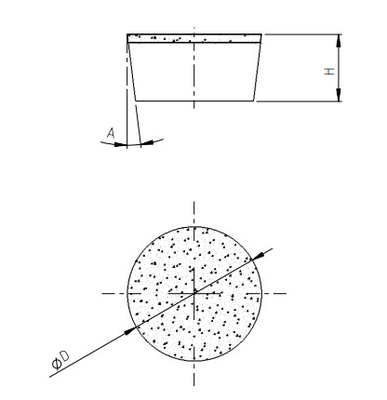

PCD Round Insert Shape	Specification Model	Basic size
		D	H	H1	A	B
	RCMX060500	6.5	5	4.8	120°	7°
	RCMX090700	9.525	7.94	7.7	120°	7°
	RCMX120700	12.7	7.94	7.7	120°	7°


Note: The above size can be customized according to customer needs.

Round PCD Insert----Poly Crystalline Diamond PCD cutter with carbide support

Most of today's high-speed surfacers are designed to use CBN or PCD inserts in their cutter heads.
PCD Inserts consist of a layer of Polycrystalline Diamond bonded to a carbide substrate.
As an added benefit, the carbide back can be used for aluminum heads after the PCD side is used up.

PCD (Polycrystalline Diamond) is an ultra-hard tool material (substrate) consisting of a
synthetic polycrystalline diamond tip brazed to a carbide insert carrier.

Round PCD Insert----Steel Roll industry solutions

According to the different requirements of roll processing materials and processing technology, Beijing Worldia Diamond Tools Co., Ltd. has developed different types of tools.   According to the different requirements of roll processing materials and processing technology, Beijing Worldia Diamond Tools Co., Ltd. has developed different types of tools.   Worldia also provides a PCD round insert, PCBN round insert, PCD small boring tool, PCBN small boring tool, Carbide small boring tool, and lettering knife.

Round PCD Insert-----WHY CHOOSE US
