Product Details:
|
| Name: | Round PCD Insert /PCD Round Blade | Type: | PCD Tools |
|---|---|---|---|
| Model Number: | RCMX060500---V/RCMX090700---V/RCMX120700---V | Angle: | 7° |
| Material: | PCD/ Polycrystalline Diamond | Application: | For Processing Externalexternal And Annular Grooves Of Carbide Rolls And Other Composite Rolls With A Hardness Above HRA85 |
| Advantages: | Strong Impact Resistance Good Wear Resistance High Precision, Stable Performance And High Processing Efficiency | ||
| High Light: | rcmn-v round insert turning tool,worldia round insert turning tool |
||
RCMN-V round PCD cutting insert blade tool HRA85 for CNC caribe steel rolls turning
For carbide rolls and other composite rolls with a hardness above HRA85,
PCD round blades can be used to process external and annular grooves.
A complete set of a tool supporting solutions for the steel roll industry has been developed.
It is suitable for a series of processes such as rough turning of the outer circle, hole processing,
crescent groove milling, engraving, and marking of roll processing.
|
|
|

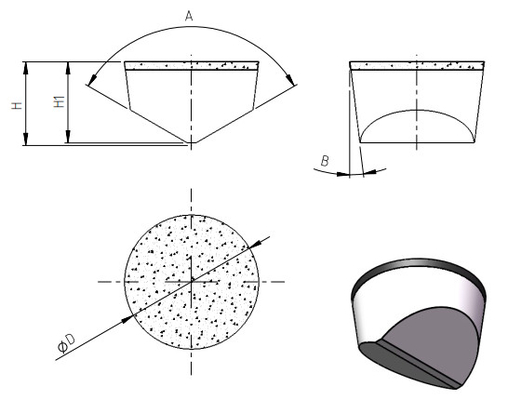

| PCD Round Insert Shape | Specification Model | Basic size | ||||
| D | H | H1 | A | B | ||
|
RCMX060500---V | 6.5 | 5 | 4.8 | 120° | 7° |
| RCMX090700---V | 9.525 | 7.94 | 7.7 | 120° | 7° | |
| RCMX120700---V | 12.7 | 7.94 | 7.7 | 120° | 7° | |
Note: The above size can be customized according to customer needs.
Tools with Poly-Crystalline Diamond (PCD) cutting materials can reduce your tooling cost significantly, PCD tools are ideal for use with non-ferrous metal, such as aluminum, Zinc and magnesium alloys, GRP composites, carbon fiber reinforced plastics, “green” carbide and ceramic as well as all abrasive materials.
We manufacture PCD Tools with advanced processing machine and control the product quality from the very beginning which keep PCD tools with high accuracy and good quality with consistency.
|
|
According to the different requirements of roll processing materials and processing technology, Beijing Worldia Diamond Tools Co., Ltd. has developed different types of tools.

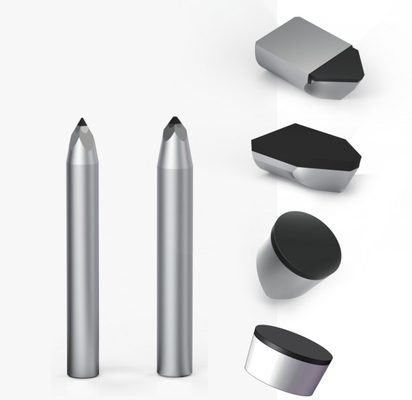

For example.PCD/CBN round inserts used for turning the outer circle of rolls and ring grooves ring roller carbide milling groove boring alveolar tool. PCBN small boring tool, pcd small boring tool(small boring tool can be called a rotary cutter, knife ribs, small knife, etc). And the four-sided carving knife is used for engraving marks in the ring groove of the roll. It constitutes a complete set of tool solutions from roll blank to finished product processing. |
