Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Name: | PCBN Standard Insert | Usage: | Turning Tools |
| Material: | PCBN+Carbide | PCBN Grade: | MKN10/MKN20 |
| Tips: | 3 | Application: | High-precision Maching Of Cast Iron |
| High Light: | WNGA PCBN Cutting Inserts,Lathe Inserts PCBN Cutting Inserts,cast iron PCBN Cutting Inserts |
||

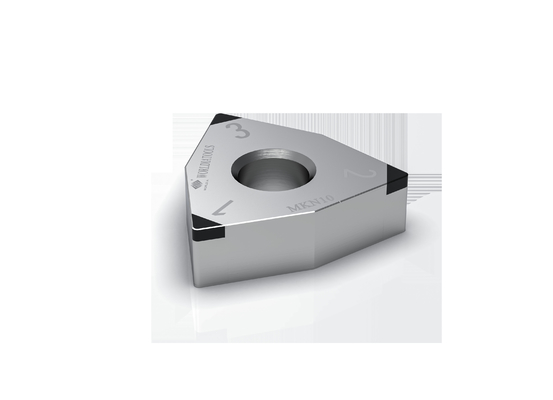

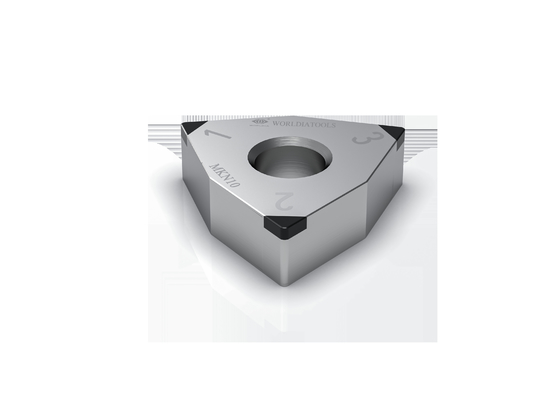

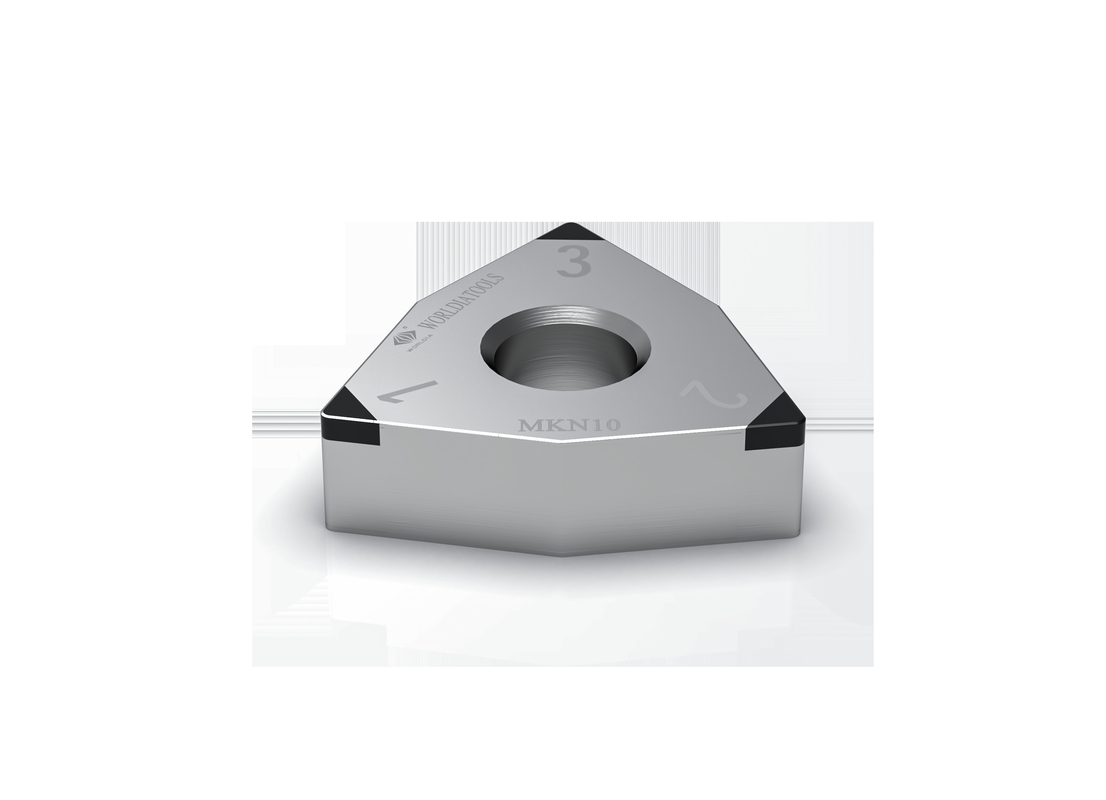

WNGA PCBN Cutting Inserts CBN Lathe Inserts For cast iron
PCBN Standard Insert Description:
PCBN standard inserts are made of polycrystalline cubic boron nitride (PCBN),
which is a synthetic material that is extremely hard and wear-resistant.
PCBN standard inserts offer several advantages over traditional cutting tools.
They can operate at higher cutting speeds, resulting in shorter machining times and improved productivity.
They also have longer tool life, reducing the need for tool changes and increasing efficiency.
Additionally, PCBN standard inserts can produce high-quality surface finishes and tight tolerances,
which is critical in many precision machining applications.
PCBN Standard Insert: MANANOVA Series
MANANOVA is the name for Worldia‘s stock-keeping standard product portfolio.
It provides best-in-class high-quality products within a wide range of most-common applications at very attractive prices.
Each item has an inventory code which simplifies the order process
Main products:
PCBN standard ISO insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
PCD standard ISO insert is suitable for rough and finish machining of aluminum alloy and other non-ferrous metal materials.
PCBN Standard Insert Application:
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
PCBN Standard Insert Advantages:
· Universal
· Easy choice
· Fast delivery
PCBN Standard Insert Service:
· Online store service
· Local distributor support
· Technical support
PCBN Standard Insert Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| WNGA | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
WNGA 431 | WNGA 080404 | 3N | 12.7 | 4.76 | 0.4 | 5.16 | 2.2 |
| WNGA 432 | WNGA 080408 | 3N | 12.7 | 4.76 | 0.8 | 5.16 | 2.2 | |
