Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Name: | PCBN Standard Insert | Usage: | Turning Tools |
| Material: | PCBN+Carbide | PCBN Grade: | MSN10/20 |
| Model Number: | CCGW | Application: | High-precision Maching Of Powder Metallurgy |
| High Light: | CCGW PCBN Carbide Turning Inserts,MSN10 PCBN Carbide Turning Inserts,PCBN Insert For Powder Metallurgy |
||

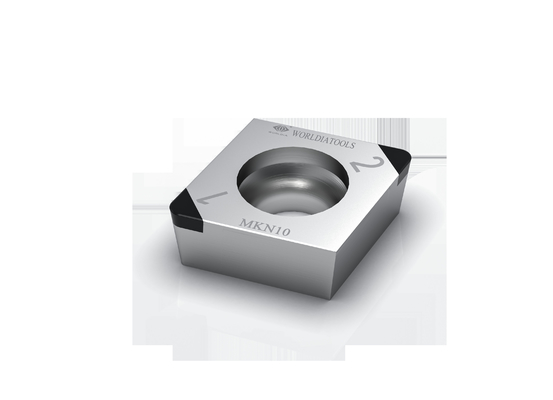

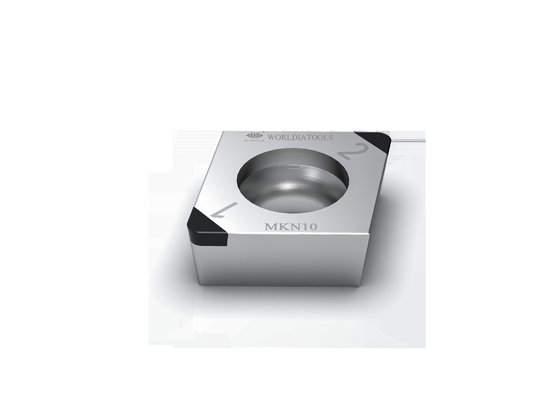

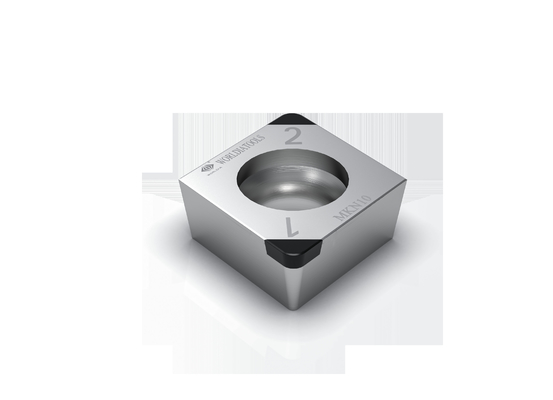

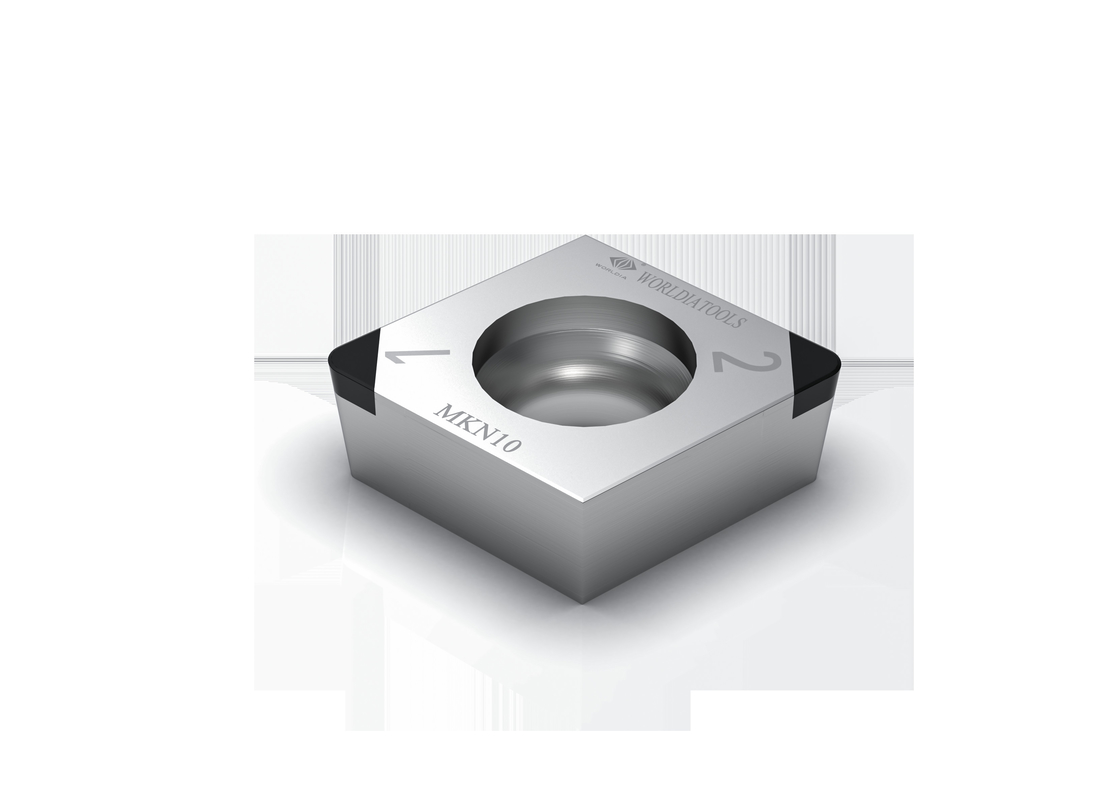

CCGW Standard PCBN Carbide Turning Insert PCBN Cutting Insert for powder metallurgy
ISO PCBN Cutting Insert Description:
PCBN (Polycrystalline Cubic Boron Nitride) cutting insert is a type of cutting tool insert used in machining applications.
PCBN material is extremely hard and wear-resistant, making it ideal for cutting hard materials such as hardened steel, cast iron, and powder metallurgy.
PCBN cutting inserts have a longer tool life and higher cutting speeds compared to other cutting materials, which can result in increased productivity and reduced tooling costs over time.
ISO PCBN Cutting Insert: MANANOVA Standard Series
MANANOVA is the name for Worldia‘s stock-keeping standard product portfolio.
It provides best-in-class high-quality products within a wide range of most-common applications at very attractive prices.
Each item has an inventory code which simplifies the order process
Main products:
PCBN cutting insert is universal for hardened steel,cast iron,ductile iron and powder metallury.
PCD cutting insert can be used in many fields including car industry, energy equipment, and the wood and stone
industry. It can be used to cut and process different materials such as nonferrous metal, tungsten carbide, ceramic,
nonmetal and composite material.
ISO PCBN Cutting Insert Advantages:
· Universal
· Easy choice
· Fast delivery
ISO PCBN Cutting Insert Service:
· Online store service
· Local distributer support
· Technical support
ISO PCBN Cutting Insert Application:
| MHN10C | Applied to continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to heavy interrupted cutting of hardened steel |
| MKN10 | Applied to cutting of gray cast iron |
| MKN20 | Applied to cutting of ductile iron |
| MSN10 | Applied to cutting of powder metallurgy |
| MSN20 | Applied to cutting of powder metallurgy |
ISO PCBN Cutting Insert Specification:
Material Introduction - Easy choice for CBN Grade
ISO H:Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| CCGW | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
CCGW 21.50.5 | CCGW 060202 | 2N | 6.35 | 2.38 | 0.2 | 2.8 | 2.2 |
| CCGW 21.51 | CCGW 060204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 | |
| CCGW 21.52 | CCGW 060208 | 2N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 | |
| CCGW 32.50.5 | CCGW 09T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 2.2 | |
| CCGW 32.51 | CCGW 09T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 2.2 | |
| CCGW 32.52 | CCGW 09T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 2.2 | |
| CCGW 32.53 | CCGW 09T312 | 2N | 9.525 | 3.97 | 1.2 | 4.4 | 2.2 | |
Customer Review of ISO PCBN Cutting Insert
About WORLDIA:
Beijing Worldia Diamond Tools Co., Ltd was established in 2006.
As a national hi-tech enterprise, Worldia focuses upon R & D, production, sales and service of high precision diamond cutting tools.
Our products include high-precision PCD/PCBN/CVDD cutting tools, solid carbide cutting tools, diamond scribing wheels and related accessories.The cutting tools we provide have been widely applied in automotive, electronic, new energy, and other industries.
