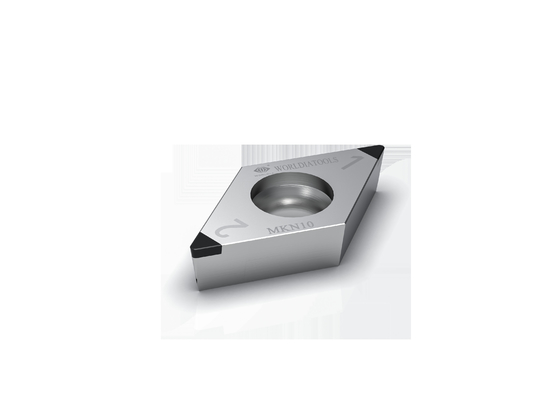

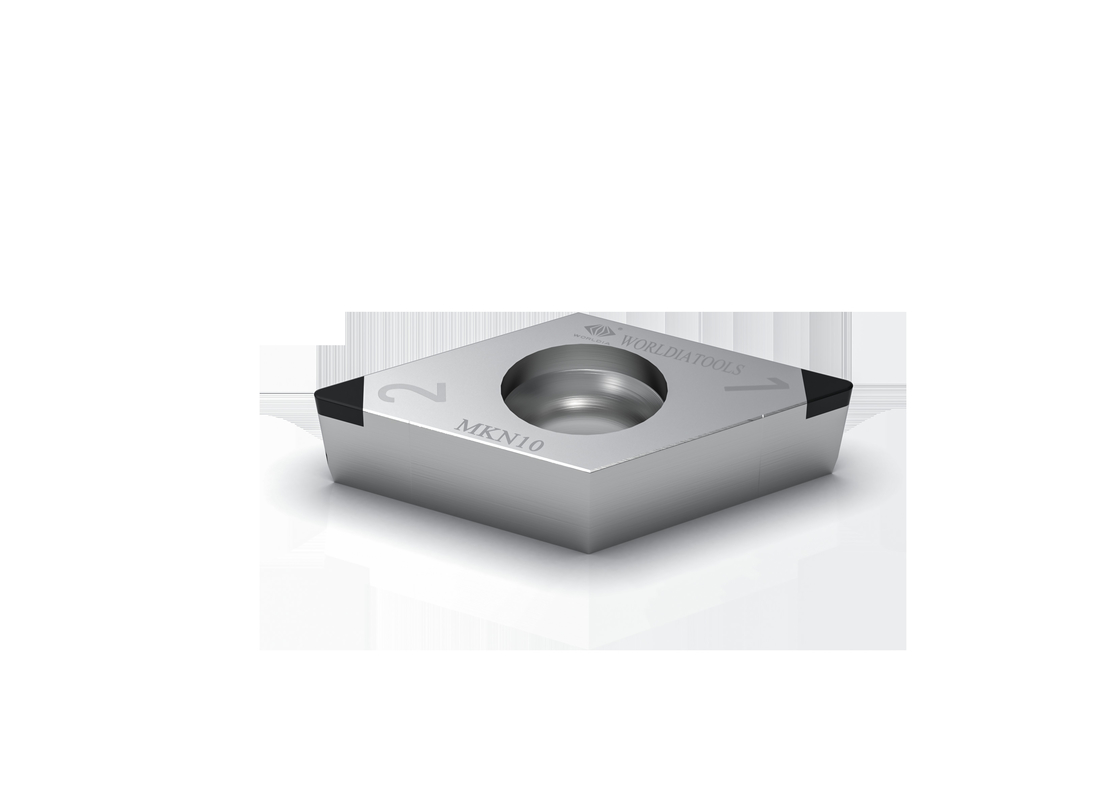

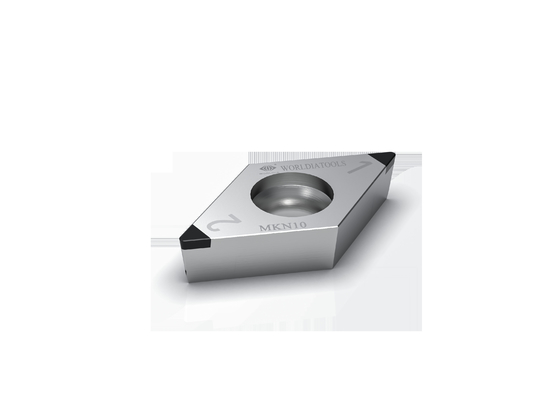

DCGW 11T308 2-3um Grain PCBN Carbide Turning Insert 2N Tips

DCGW 11T308 2-3um Grain PCBN Carbide Turning Insert 2N Tips
DCGW 11T308 2-3um Grain PCBN Carbide Turning Insert 2N Tips
DCGW 11T308 2-3um Grain PCBN Carbide Turning Insert 2N Tips DCGW 11T308 2-3um Grain PCBN Carbide Turning Insert 2N Tips DCGW 11T308 2-3um Grain PCBN Carbide Turning Insert 2N Tips DCGW 11T308 2-3um Grain PCBN Carbide Turning Insert 2N Tips DCGW 11T308 2-3um Grain PCBN Carbide Turning Insert 2N Tips

Large Image :  DCGW 11T308 2-3um Grain PCBN Carbide Turning Insert 2N Tips

Product Details:
Place of Origin: Beijing, China
Brand Name: ManaNova
Certification: ISO9001,14001.18001, RoHS
Model Number: DCGW 11T308
Payment & Shipping Terms:
Minimum Order Quantity: 2 Piece
Price: $20-40/ Piece
Packaging Details: 2 PCs/Blue rose box
Delivery Time: 3-4days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: In stock

DCGW 11T308 2-3um Grain PCBN Carbide Turning Insert 2N Tips

Description
Model Number: DCGW 11T308 PCBN Grade: MKN10/20
Advantages: · Universal · Easy Choice · Fast Delivery Product Brand: WORLDIA
Product Family: ManaNova Name: PCBN Standard Insert
Material: PCBN+Carbide Application: High Precision Of Machining Of Cast Iron
High Light:

DCGW 11T308 Carbide Turning Insert

,

PCBN Carbide Turning Insert 2N Tips

,

3um Grain PCBN Turning Insert

 DCGW 11T304 Standard PCBN Carbide Turning Insert PCBN Cutting Insert for cast iron



WORLDIA:



With high-quality products and professional technical support, we are honored to service the top

manufacturers in automotive, new energy, wind power, engineering machinery industries, etc.



Specification:

Material Introduction - Easy choice for CBN Grade

ISO H: Hardened Steel Continuous cutting

ISO K: Cast Iron Light interrupted cutting

ISO S: Powder Metallurgy Heavy interrupted cutting

Material ISO H ISO K ISO S
PCBN Grade MHN10C MHN20C MNH30C MKN10 MKN20 MSN10 MSN20
Smooth Moderate Toughness Cast Iron Ductile Iron Powder Metallurgy Powder Metallurgy
Vc 180(150~250)
m/min
100(50~150)
m/min
80(30~120)
m/min
600(300~800)
m/min
300(150~450)
m/min
300(200~500)
m/min
500(300~800)
m/min
fn 0.1(0.03~0.2)
mm/r
0.1(0.03~0.2)
mm/r
0.1(0.03~0.2)
mm/r
0.1(0.03~0.3)
mm/r
0.1(0.03~0.3)
mm/r
0.1(0.03~0.3)
mm/r
0.1(0.03~0.3)
mm/r
% 45~55 60~70 85~95 85~95 60~70 60~70 85~95
Grain size 1~2 um 1~2 um 2~3um 2~3 um 1~2 um 1~2 um 2~3 um
Bond TiC TiN Co/W Co/W TiCN TiCN Co/W



DCGW Shape Dimensions
ANSI Code ISO Code Tips IC
mm
S
mm
R
mm
Φd
mm
LE
mm
All
Stocked
DCGW 21.51 DCGW 070204 2N 6.35 2.38 0.4 2.8 2.2
DCGW 21.52 DCGW 070208 2N 6.35 2.38 0.8 2.8 2.2

DCGW 32.50.5 DCGW 11T302 2N 9.525 3.97 0.2 4.4 2.2
DCGW 32.51 DCGW 11T304 2N 9.525 3.97 0.4 4.4 2.2
DCGW 32.52 DCGW 11T308 2N 9.525 3.97 0.8 4.4 2.2


Application:

MHN10C Applied to the continuous cutting of hardened steel
MHN20C Applied to medium interrupted cutting of hardened steel
MHN30C Applied to the heavy interrupted cutting of hardened steel
MKN10 Applied to the cutting of gray cast iron
MKN20 Applied to the cutting of ductile iron
MSN10 Applied to the cutting of powder metallurgy
MSN20 Applied to the cutting of powder metallurgy



Description:



The critical feature of ManaNova is Easy choice and Fast delivery.
"Easy choice" is easy to choose according to the comparison table and application.
"Fast delivery" is all the ManaNova PCD Inserts in the catalog are available in stock.

Eliminating force majeure, you can get within 4-5 days.



Material:



Poly-Crystalline Diamond (PCD)

1. Reduce your tooling cost significantly

2. For non-ferrous metal machining



Polycrystalline cubic boron nitride(CBN)

1. With an excellent hot hardness

2. Good toughness and thermal shock resistance.

3. For hardened steel, cast irons, sintered irons as well as powder metallurgy components machining



Main products:



PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.

PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.



Service:
· Online store service
· Local distributor support
· Technical support
