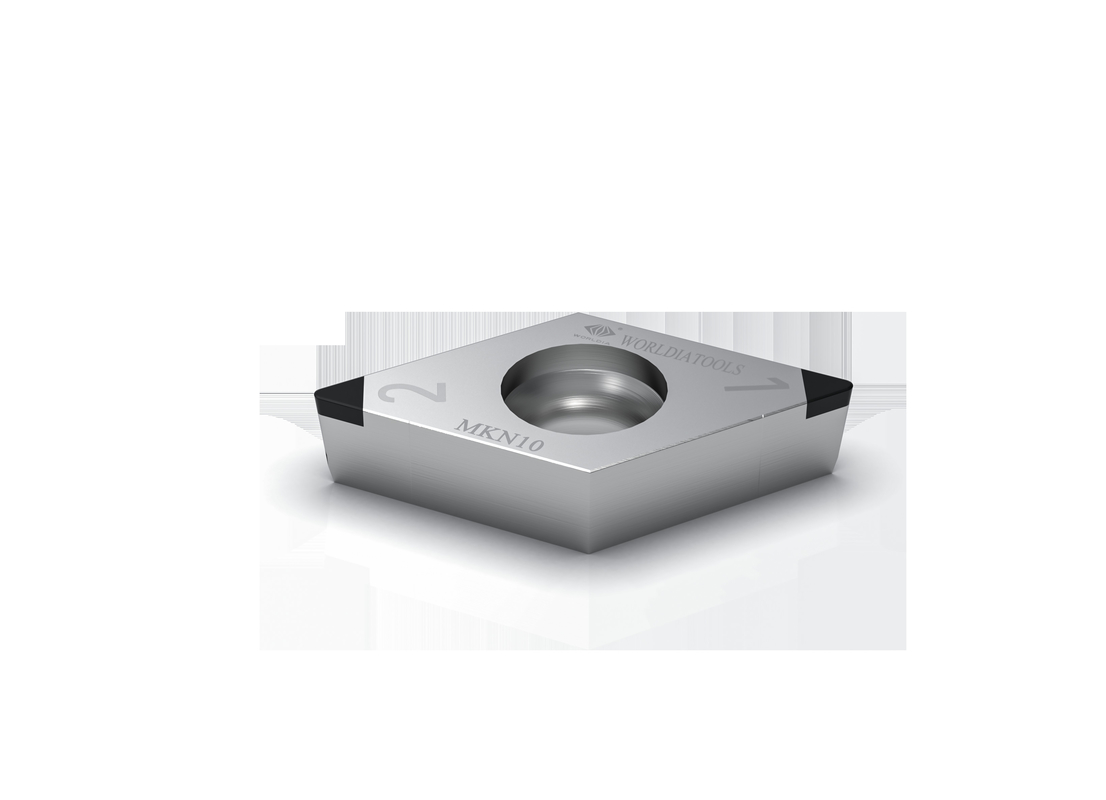

DCGW Carbide Turning Insert High Precision PCBN Cutting Insert

DCGW Carbide Turning Insert High Precision PCBN Cutting Insert
DCGW Carbide Turning Insert High Precision PCBN Cutting Insert
DCGW Carbide Turning Insert High Precision PCBN Cutting Insert DCGW Carbide Turning Insert High Precision PCBN Cutting Insert DCGW Carbide Turning Insert High Precision PCBN Cutting Insert DCGW Carbide Turning Insert High Precision PCBN Cutting Insert DCGW Carbide Turning Insert High Precision PCBN Cutting Insert

Large Image :  DCGW Carbide Turning Insert High Precision PCBN Cutting Insert

Product Details:
Place of Origin: Beijing, China
Brand Name: ManaNova
Certification: ISO9001,14001.18001, RoHS
Model Number: DCGW 11T302
Payment & Shipping Terms:
Minimum Order Quantity: 2 Piece
Price: $20-40/ Piece
Packaging Details: 2 PCs/Blue rose box
Delivery Time: 3-4days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: In stock

DCGW Carbide Turning Insert High Precision PCBN Cutting Insert

Description
Model Number: DCGW 11T302 PCBN Grade: MKN10/20
Advantages: ·High Quality ·Low Cost ·Factory Direct Supply Product Brand: WORLDIA
Product Family: ManaNova Name: PCBN Standard Insert
Material: PCBN+Carbide Application: High Precision Of Machining Of Cast Iron
High Light:

DCGW Carbide Turning Insert

,

High precision PCBN Cutting Insert

,

PCBN Carbide DCGW insert

DCGW 11T302 Standard PCBN Carbide Turning Insert PCBN Cutting Insert for cast iron



WORLDIA:



WORLDIA pays special attention to the making of Standard Super Hard Cutting Tools.

And we have made a tremendous amount of technical innovations in designing and manufacturing

PCBN/PCD/CVD inserts and related products.



Specification:

Material Introduction - Easy choice for CBN Grade

ISO H: Hardened Steel Continuous cutting

ISO K: Cast Iron Light interrupted cutting

ISO S: Powder Metallurgy Heavy interrupted cutting

Material ISO H ISO K ISO S
PCBN Grade MHN10C MHN20C MNH30C MKN10 MKN20 MSN10 MSN20
Smooth Moderate Toughness Cast Iron Ductile Iron Powder Metallurgy Powder Metallurgy
Vc 180(150~250)
m/min
100(50~150)
m/min
80(30~120)
m/min
600(300~800)
m/min
300(150~450)
m/min
300(200~500)
m/min
500(300~800)
m/min
fn 0.1(0.03~0.2)
mm/r
0.1(0.03~0.2)
mm/r
0.1(0.03~0.2)
mm/r
0.1(0.03~0.3)
mm/r
0.1(0.03~0.3)
mm/r
0.1(0.03~0.3)
mm/r
0.1(0.03~0.3)
mm/r
% 45~55 60~70 85~95 85~95 60~70 60~70 85~95
Grain size 1~2 um 1~2 um 2~3um 2~3 um 1~2 um 1~2 um 2~3 um
Bond TiC TiN Co/W Co/W TiCN TiCN Co/W



DCGW Shape Dimensions
ANSI Code ISO Code Tips IC
mm
S
mm
R
mm
Φd
mm
LE
mm
All
Stocked
DCGW 21.51 DCGW 070204 2N 6.35 2.38 0.4 2.8 2.2
DCGW 21.52 DCGW 070208 2N 6.35 2.38 0.8 2.8 2.2

DCGW 32.50.5 DCGW 11T302 2N 9.525 3.97 0.2 4.4 2.2
DCGW 32.51 DCGW 11T304 2N 9.525 3.97 0.4 4.4 2.2
DCGW 32.52 DCGW 11T308 2N 9.525 3.97 0.8 4.4 2.2


Application:

MHN10C Applied to the continuous cutting of hardened steel
MHN20C Applied to medium interrupted cutting of hardened steel
MHN30C Applied to the heavy interrupted cutting of hardened steel
MKN10 Applied to the cutting of gray cast iron
MKN20 Applied to the cutting of ductile iron
MSN10 Applied to the cutting of powder metallurgy
MSN20 Applied to the cutting of powder metallurgy



Description:



As a high-end standard cutting tool series, MANANOVA carries out the whole process of quality

management from raw materials, with sophisticated production testing equipment, professional and

experienced R&D and production team, and professional technical services, so that every user can

continue to experience Worldia cutting tools advantages.


Main products:

MKNxx is used for the general processing of cast iron materials.

MKN10 is suitable for gray cast iron, and MKN20 is suitable for ductile iron.



PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.

“Seven material/ one type” namely each specification corresponding to seven materials

(MHN10C ,MHN20C ,MHN30C, MKN10,MKN20,MSN 10)is the feature of the PCBN insert.



PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.

The four edge types are standard, chip breaker, full edge, and full face.



Advantages:
· Universal
· Easy choice
· Fast delivery


Service:
· Online store service
· Local distributor support
· Technical support
