Product Details:
|
| PCBN Grade: | MKN10/20 | Product Brand: | WORLDIA |
|---|---|---|---|
| Tips: | 2N | Product Family: | ManaNova |
| Name: | PCBN Standard Insert | Material: | PCBN+Carbide |
| Model Number: | DCGW 070204 | Application: | High-precision Maching Of Cast Iron |
| Highlight: | DCGW070204 Carbide Turning Inserts,ISO9001 PCBN Carbide Turning Inserts,DCGW insert For Hardened Steel |
||

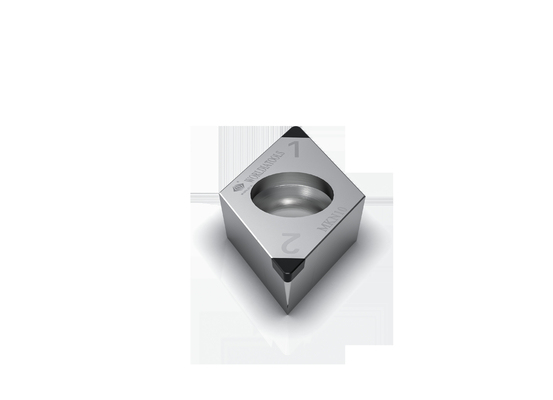

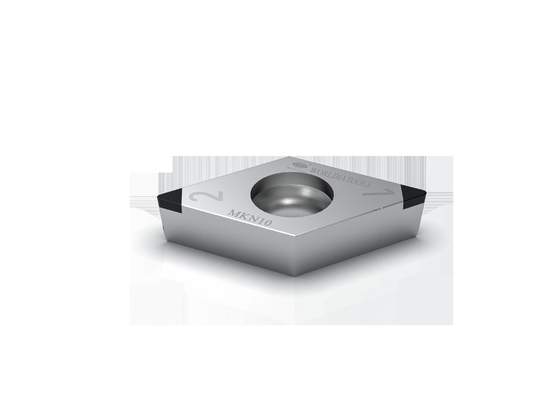

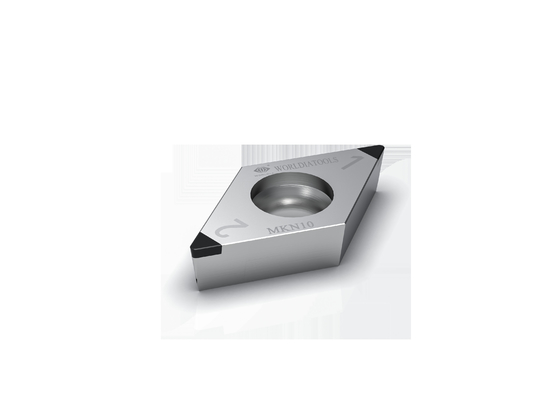

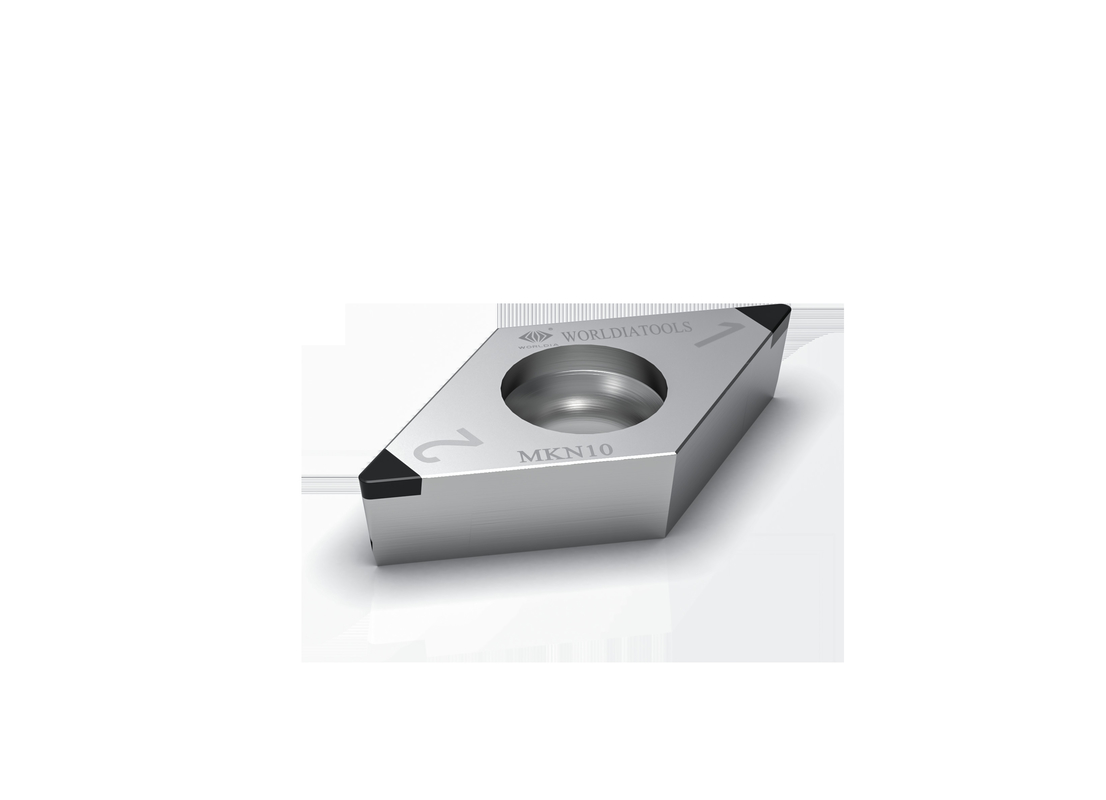

DCGW 070204 Standard PCBN Carbide Turning Insert PCBN Cutting Insert for cast iron
Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| DCGW | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
DCGW 21.51 | DCGW 070204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 |
| DCGW 21.52 | DCGW 070208 | 2N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 | |
| DCGW 32.50.5 | DCGW 11T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 2.2 | |
| DCGW 32.51 | DCGW 11T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 2.2 | |
| DCGW 32.52 | DCGW 11T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 2.2 |
|
Application:
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
Description:
As a high-end standard cutting tool series, MANANOVA carries out the whole process of quality
management from raw materials, with sophisticated production testing equipment, professional and
experienced R&D and production team, and professional technical services, so that every user can
continue to experience Worldia cutting tools advantages.
Main products:
PCBN insert: material/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
Polycrystalline cubic boron nitride(CBN) is a material with an excellent hot hardness that can be used at very high
cutting speeds. It also exhibits good toughness and thermal shock resistance.CBN tools are ideal for use with
hardened steel, cast irons, and sintered irons as well as powder metallurgy components.
PCD insert: Providing stable, universal, high efficient cutting effect.
PCD Turning Inserts can be used in many fields including the car industry, energy equipment, and the wood and stone
industry. It can be used to cut and process different materials such as nonferrous metal, tungsten carbide, ceramic,
nonmetal, and composite material.
Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributor support
· Technical support
