Product Details:
|
Model Number: | DCGW 11T304 | PCBN Grade: | MKN10/20 |
---|---|---|---|
Feature: | Easy Choice And Fast Delivery | Product Brand: | WORLDIA |
Product Family: | ManaNova | Name: | PCBN Standard Insert |
Material: | PCBN+Carbide | Application: | Machining Of Cast Iron |
High Light: | DCGW 11T304 PCBN Cutting Tools,MKN10 PCBN Cutting Tools,PCBN carbide inserts for woodturning |

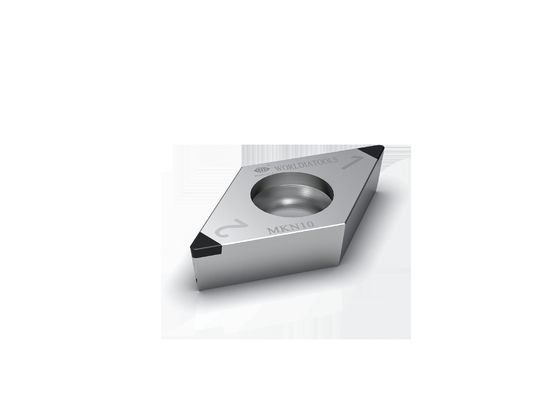

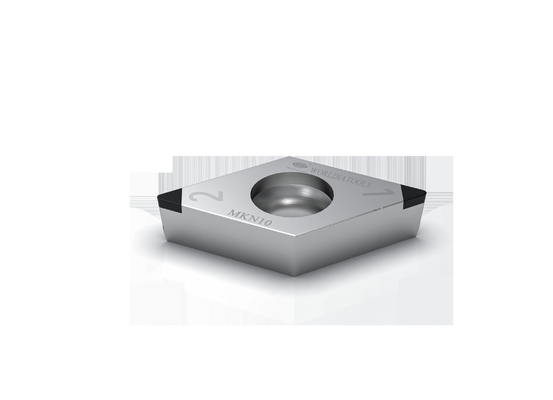

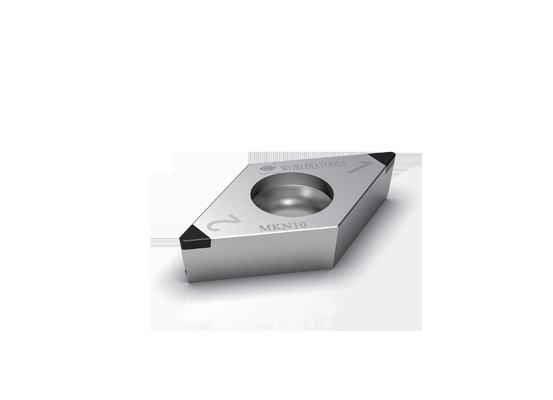

DCGW 11T304 Standard PCBN Carbide Turning Insert PCBN Cutting Insert for cast iron
WORLDIA:
In the manufacturing worldia, changes push us to promote our products and service.
We are devoted to providing you with cutting tools and solutions that match the ambitions of your company.
We want to grow up with you together.
Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
Material | ISO H | ISO K | ISO S | ||||
PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
% | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
DCGW | Shape | Dimensions | ||||||
ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
All Stocked |
DCGW 21.51 | DCGW 070204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 |
DCGW 21.52 | DCGW 070208 | 2N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 | |
DCGW 32.50.5 | DCGW 11T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 2.2 | |
DCGW 32.51 | DCGW 11T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 2.2 | |
DCGW 32.52 | DCGW 11T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 2.2 |
Application:
MHN10C | Applied to the continuous cutting of hardened steel |
MHN20C | Applied to medium interrupted cutting of hardened steel |
MHN30C | Applied to the heavy interrupted cutting of hardened steel |
MKN10 | Applied to the cutting of gray cast iron |
MKN20 | Applied to the cutting of ductile iron |
MSN10 | Applied to the cutting of powder metallurgy |
MSN20 | Applied to the cutting of powder metallurgy |
Description:
ManaNova, a sub-brand of Worldia, is positioned as a high-end standard series.
To meet the needs of customers as the goal, we strictly select PCD/PCBN materials to provide a universal,
stable, and efficient cutting effect.
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose
PCD and PCBN materials to provide the universal cutting effect.
Main products:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Advantages:
· Universal
· Easy choice
· Fast delivery
