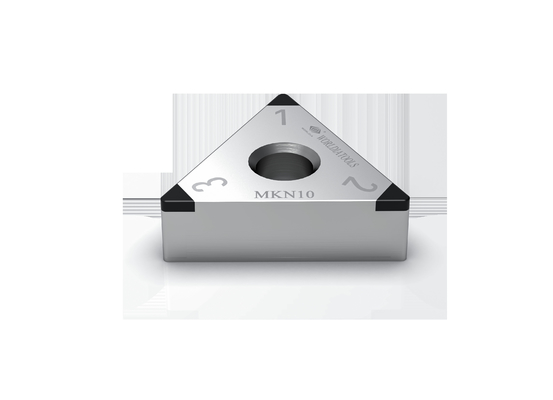

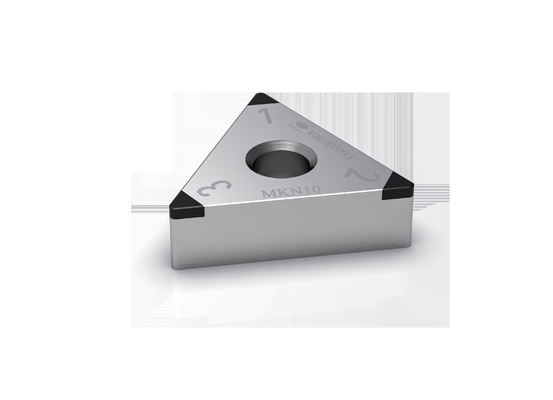

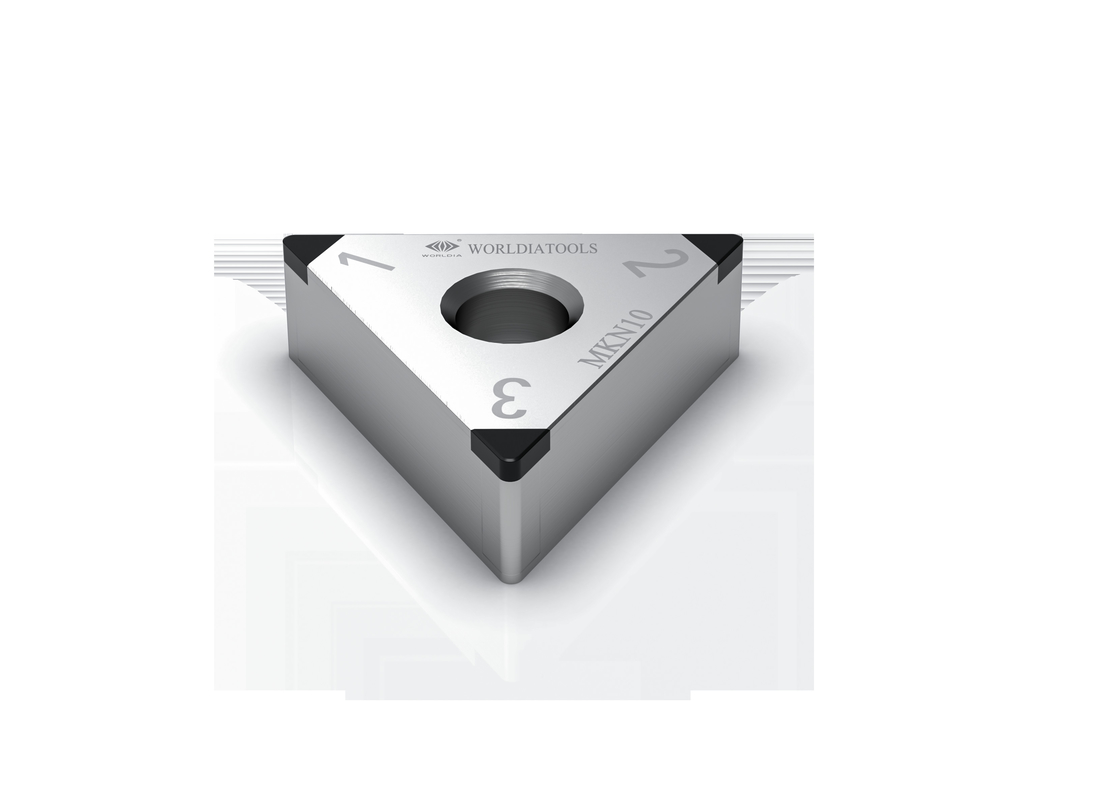

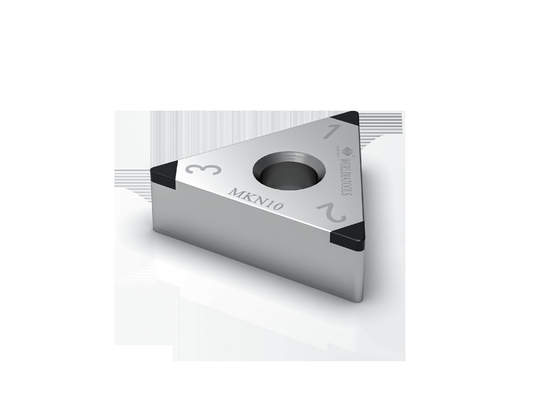

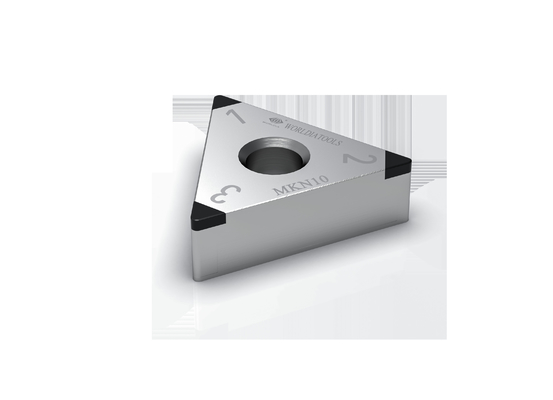

TNGA PCBN Carbide Turning Insert PCBN Inserts For Powder Metallurgy

TNGA PCBN Carbide Turning Insert PCBN Inserts For Powder Metallurgy
TNGA PCBN Carbide Turning Insert PCBN Inserts For Powder Metallurgy
TNGA PCBN Carbide Turning Insert PCBN Inserts For Powder Metallurgy TNGA PCBN Carbide Turning Insert PCBN Inserts For Powder Metallurgy TNGA PCBN Carbide Turning Insert PCBN Inserts For Powder Metallurgy TNGA PCBN Carbide Turning Insert PCBN Inserts For Powder Metallurgy TNGA PCBN Carbide Turning Insert PCBN Inserts For Powder Metallurgy TNGA PCBN Carbide Turning Insert PCBN Inserts For Powder Metallurgy

Large Image :  TNGA PCBN Carbide Turning Insert PCBN Inserts For Powder Metallurgy

Product Details:
Place of Origin: Beijing, China
Brand Name: ManaNova
Certification: ISO9001,14001.18001, RoHS
Model Number: TNGA
Payment & Shipping Terms:
Minimum Order Quantity: 2 Piece
Price: $20-40/ Piece
Packaging Details: 2 PCs/Blue rose box
Delivery Time: 3-4days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: In stock

TNGA PCBN Carbide Turning Insert PCBN Inserts For Powder Metallurgy

Description
Product Brand: WORLDIA Product Family: ManaNova
Name: PCBN Standard Insert Usage: Turning Tools
Material: PCBN+Carbide PCBN Grade: MSN10/20
Model Number: TNGA Application: High-precision Maching Of Powder Metallurgy
High Light:

TNGA PCBN Carbide Turning Insert

,

MSN10 PCBN Carbide Turning Insert

,

PCBN Inserts For Powder Metallurgy

TNGA Standard PCBN Carbide Turning Insert PCBN Cutting Insert for powder metallurgy



Description:

"ManaNova" is a sub-brand of Worldia,focusing on the high-end standard series.

ManaNova is a concept which stands at the view of end-users, we strictly choose PCD and PCBN Material

to provide universal cutting effect.
The key feature of ManaNova is Easy choice and Fast delivery.
"Easy choice" : It is easy to choose according to comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.

                         Eliminating of force majeure, you can get within 4-5 days.


Main products:
PCBN insert: material/ 1 type, universal for hardened steel,cast iron,ductile iron and powder metallury.
Polycrystalline cubic boron nitride(CBN) is a material with excellent hot hardness that can be used at very high

cutting speeds. It also exhibits good toughness and thermal shock resistance.CBN tools are ideal for the use with

hardened steel,cast irons and sintered irons as well as powder metallurgy components.


PCD insert: Providing stable, universal, high efficient cutting effect.
PCD Turning Inserts can be used in many fields including car industry, energy equipment, and the wood and stone

industry. It can be used to cut and process different materials such as nonferrous metal, tungsten carbide, ceramic,

nonmetal and composite material.


Advantages:
· Universal
· Easy choice
· Fast delivery


Service:
· Online store service
· Local distributer support
· Technical support



Application:

MHN10C Applied to continuous cutting of hardened steel
MHN20C Applied to medium interrupted cutting of hardened steel
MHN30C Applied to heavy interrupted cutting of hardened steel
MKN10 Applied to cutting of gray cast iron
MKN20 Applied to cutting of ductile iron
MSN10 Applied to cutting of powder metallurgy
MSN20 Applied to cutting of powder metallurgy



Specification:

Material Introduction - Easy choice for CBN Grade

ISO H:Hardened Steel Continuous cutting

ISO K: Cast Iron Light interrupted cutting

ISO S: Powder Metallurgy Heavy interrupted cutting

Material ISO H ISO K ISO S
PCBN Grade MHN10C MHN20C MNH30C MKN10 MKN20 MSN10 MSN20
Smooth Moderate Toughness Cast Iron Ductile Iron Powder Metallurgy Powder Metallurgy
Vc 180(150~250)
m/min
100(50~150)
m/min
80(30~120)
m/min
600(300~800)
m/min
300(150~450)
m/min
300(200~500)
m/min
500(300~800)
m/min
fn 0.1(0.03~0.2)
mm/r
0.1(0.03~0.2)
mm/r
0.1(0.03~0.2)
mm/r
0.1(0.03~0.3)
mm/r
0.1(0.03~0.3)
mm/r
0.1(0.03~0.3)
mm/r
0.1(0.03~0.3)
mm/r
% 45~55 60~70 85~95 85~95 60~70 60~70 85~95
Grain size 1~2 um 1~2 um 2~3um 2~3 um 1~2 um 1~2 um 2~3 um
Bond TiC TiN Co/W Co/W TiCN TiCN Co/W



TNGA Shape Dimensions
ANSI Code ISO Code Tips IC
mm
S
mm
R
mm
Φd
mm
LE
mm
All
Stocked
TNGA 332 TNGA 160408 3N 9.525 4.76 0.8 3.81 2.2
TNGA 333 TNGA 160412 3N 9.525 4.76 1.2 3.81 2.2
