Product Details:
|
| Product Brand: | WORLDIA | Type: | Scribing Wheel |
|---|---|---|---|
| Name: | Diamond Scribing Wheel | Model Number: | TY |
| Tickness: | 0.65mm | Usage: | Glass Cutting |
| OEM: | Acceptd | Application: | Applied To Mid-size And Small Sized TFT-LCDAMOLED Glass Panel And LCD Glasses Of Thickness Above 0.1mm Which Requires High Bending |
| High Light: | TY Type Diamond Scribing Wheels,TFT LCD Diamond Scribing Wheels,AMOLED Glass Panel Scribing Wheel |
||

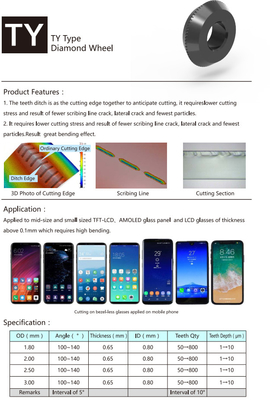

Diamond scribing wheels TY Type use for TFT-LCD,AMOLED glass panel and LCD glass
INTRODUCTION
As a tool for glass cutting, the diamond scribing wheel is the primary factor to decide the cutting quality
of the glass. The Worldia diamond scribing wheel features stable function, sharp cutting edge,
precise cutting angle, and precise roundness and thickness of the bore.
These features guarantee the excellent cutting quality.
FEATURES
|
|
APPLICATION
Applied to mid-size and small sized TFT-LCDAMOLED glass panel and LCD glasses of thickness above
0.1mm which requires high bending
SPECFICATION
| OD (mm ) | Angle(°) | Thickness(mm) | ID(mm) | Teeth Qty | Teeth Depth (μm) |
| 1.80 | 100~140 | 0.65 | 0.80 | 50→800 | 1→10 |
| 2.00 | 100~140 | 0.65 | 0.80 | 50→800 | 1→10 |
| 2.50 | 100~140 | 0.65 | 0.80 | 50→800 | 1→10 |
| 3.00 | 100~140 | 0.65 | 0.80 | 50→800 | 1→10 |
| Remarks | Interval of 5° | Interval of 10° |
