Product Details:
|
| Model Number: | Dual Type | Application: | Filmed Glass Cutting |
|---|---|---|---|
| Product Brand: | WORLDIA | Teeth Qty: | 0~280 |
| Teeth Depth: | 1.0~5.0 | Tickness: | 0.65 |
| Highlight: | Diamond Scribing Wheels,Scribing Wheels For Filmed Glass,Dual Type Scribing Wheels |
||

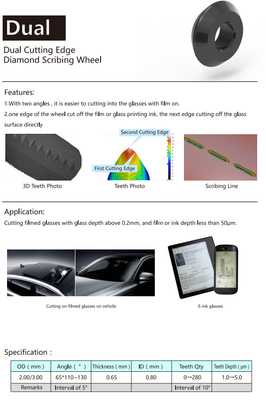

Diamond scribing wheels Dual Type use for Filmed glass cutting
WORLDIA
WORLDIA pays special attention to the making of Standard Super Hard Cutting Tools.
And we have made a tremendous amount of technical innovations in the design and manufacturing
of PCBN/PCD/CVD inserts and related products.
INTRODUCTION
In the field of glass cutting, Worldia is one of the three high-penetration diamond scribings manufacturers
for mass production worldwide and the sole producer in China. Worldia broke the monopoly of the Japanese
diamond scribing wheel in the high-end glass culling area, and get good cooperation with display
panel manufacturers from well-known manufacturers in China and worldwide.
FEATURES
| 1.With two angles it is easier to cut into the glasses with film on. |
| 2. one edge of the wheel cut off the film or glass printing ink, and the next edge cut off the glass surface directly |
APPLICATION
Cutting filmed glasses with glass depth above 0.2mmand film or ink depth less than 50um.
SPECIFICATION
| OD (mm ) | Angle(°) | Thickness(mm) | ID(mm) | Teeth Qty | Teeth Depth (μm) |
| 2.00/3.00 | 65*100~130 | 0.65 | 0.8 | 0→280 | 1.0→5.0 |
