TW1 Type Diamond Scribing Wheels TFT-LCD AMOLED Glass Cutting Wheel

TW1 Type Diamond Scribing Wheels TFT-LCD AMOLED Glass Cutting Wheel
TW1 Type Diamond Scribing Wheels TFT-LCD AMOLED Glass Cutting Wheel TW1 Type Diamond Scribing Wheels TFT-LCD AMOLED Glass Cutting Wheel

Large Image :  TW1 Type Diamond Scribing Wheels TFT-LCD AMOLED Glass Cutting Wheel

Product Details:
Place of Origin: Beijing, China
Brand Name: WORLDIA
Model Number: TW1
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $10/1Piece
Packaging Details: Plastic case
Delivery Time: 2-3 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50000 Piece/Pieces per Month
Contact Now

TW1 Type Diamond Scribing Wheels TFT-LCD AMOLED Glass Cutting Wheel

Description
Product Brand: WORLDIA Name: Diamond Scribing Wheel
Model Number: TW1 Tickness: 0.65mm
Usage: Glass Cutting OEM: Acceptd
Application: For TFT-LCD,AMOLED Glass Cutting OD: 1.80/2/2.50/3 Mm
Highlight:

TW1 Type Diamond Scribing Wheels

,

TFT LCD Scribing Wheels

,

AMOLED Glass Cutting Wheel

Diamond scribing wheels TW1 Type used for TFT-LCD, AMOLED glass cutting



INTRODUCTION



In the field of glass cutting, Worldia is one of the three high-penetration diamond scribings manufacturers

for mass production worldwide and the sole producer in China. Worldia broke the monopoly of the Japanese

diamond scribing wheel in the high-end glass culling area, and get good cooperation with display

panel manufactures from well-known manufacturers of China and worldwide.



FEATURES



  • 1.The teeth ditch is as the cutting edge together to anticipate cuttingit requireslower cutting stress and result of fewer scribing line crack,lateral crack and fewest particles.
  • 2.It requires lower cutting stress and result of fewer scribing line crack,lateral crack and fewest particles.Result great bending effect.

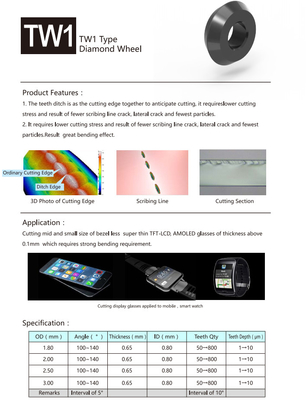

TW1 Type Diamond Scribing Wheels TFT-LCD AMOLED Glass Cutting Wheel 0



APPLICATION

TW1 Type Diamond Scribing Wheels TFT-LCD AMOLED Glass Cutting Wheel 1



SPECIFICATION



OD (mm ) Angle(°) Thickness(mm) ID(mm) Teeth Qty Teeth Depth (μm)
1.80 100~140 0.65 0.80 50→800 1→10
2.00 100~140 0.65 0.80 50→800 1→10
2.50 100~140 0.65 0.80 50→800 1→10
3.00 100~140 0.65 0.80 50→800 1→10
Remarks Interval of 5°     Interval of 10°



About us:

TW1 Type Diamond Scribing Wheels TFT-LCD AMOLED Glass Cutting Wheel 2







Tag:

AMOLED Glass Panel Scribing Wheel,

Composite Diamond Scribing Wheel,

TFT LCD Diamond Scribing Wheels
