Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Model Number: | CCGW 09T308 | Type: | PCD Insert |
| Material: | PCD+Carbide | Coating: | Uncoated |
| PCD Grade: | MND10 | Application: | Machining Of Non-ferrous Materials |
| Tips: | 1N |

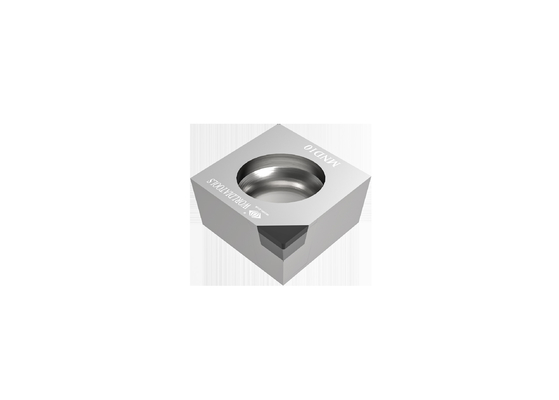

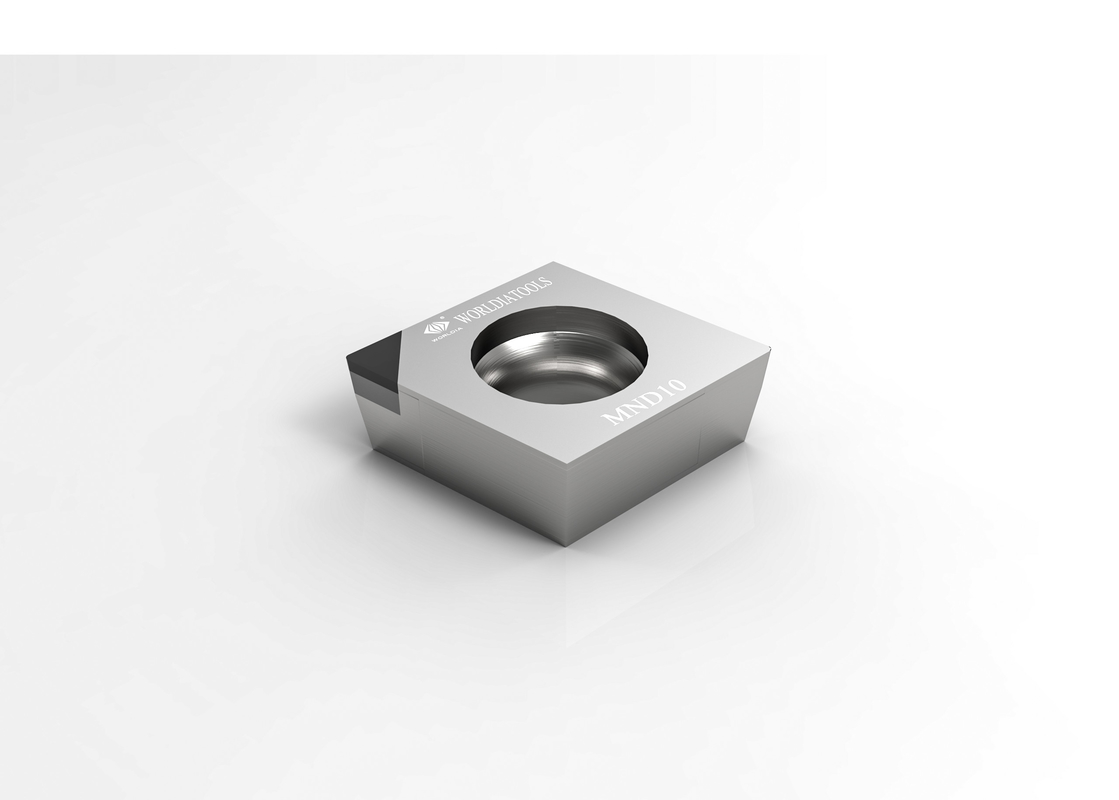

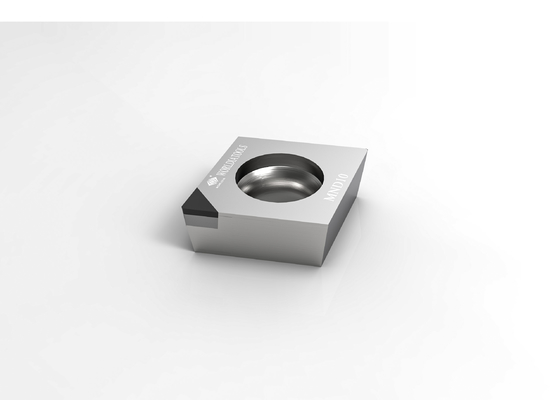

CCGW09T308 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
Application:
PCD tools are ideal for the use with non-ferrous metal, such as aluminum, Zinc, and magnesium alloys,
GRP composites, carbon fiber reinforced plastics, “green” carbide, and ceramic as well as all abrasive materials.
| MND10 | Applied to the cutting of non-ferrous materials such as aluminum alloys, etc. |
Material:
Poly-Crystalline Diamond (PCD)
1. Reduce your tooling cost significantly
2. For non-ferrous metal machining
Polycrystalline cubic boron nitride(CBN)
1. With an excellent hot hardness
2. Good toughness and thermal shock resistance.
3. For hardened steel, cast irons, sintered irons as well as powder metallurgy components machining
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose PCD and PCBN materials
to provide the universal cutting effect.
"Easy choice" : It is easy to choose according to the comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.
Main products:
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-ferrous metal materials.
Providing stable, universal, high efficient cutting effect.
PCBN insert: 7material/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
It also exhibits good toughness and thermal shock resistance.
Service:
· Online store service
· Local distributor support
· Technical support
Specification:
| CCGW | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| CCGW 21.50.5 | CCGW 060202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| CCGW 21.51 | CCGW 060204 | 1N | 6.35 | 2.38 | 0.4 | 2.8 | 2.5 | √ |
| CCGW 32.50.5 | CCGW 09T302 | 1N | 9.525 | 3.97 | 0.2 | 4.4 | 2.5 | √ |
| CCGW 32.51 | CCGW 09T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| CCGW 32.52 | CCGW 09T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| C-CCGW 21.50.5 | C-CCGW 060202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| C-CCGW 32.51 | C-CCGW 09T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| F-CCGW 21.51 | F-CCGW 060204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 6.4 | √ |
Recommendation:
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
