Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Model Number: | F-CCGW 060204 | Material: | PCD+Carbide |
| PCD Grade: | MND10 | Coting: | No Coated |
| Edge Types: | Full Face | Tips: | 2N |
| High Light: | non ferrous materials carbide turning insert,ccgw carbide turning insert,full face ccgw insert |
||

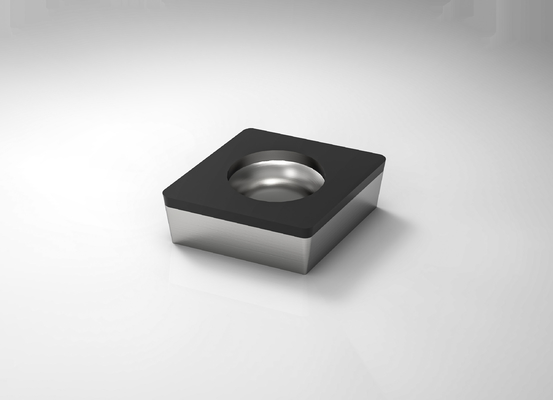

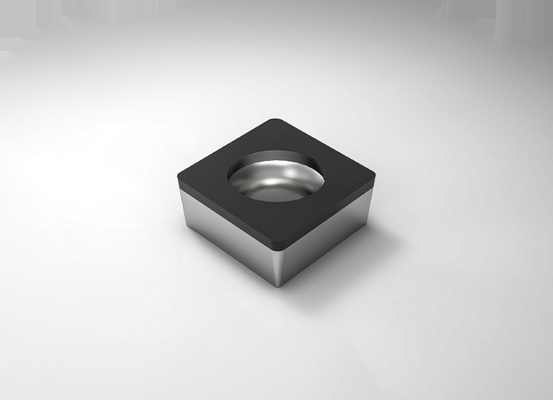

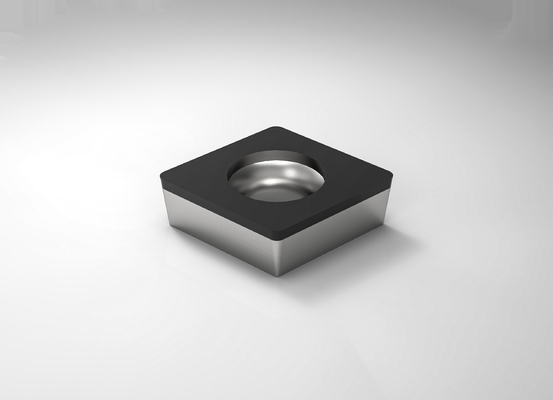

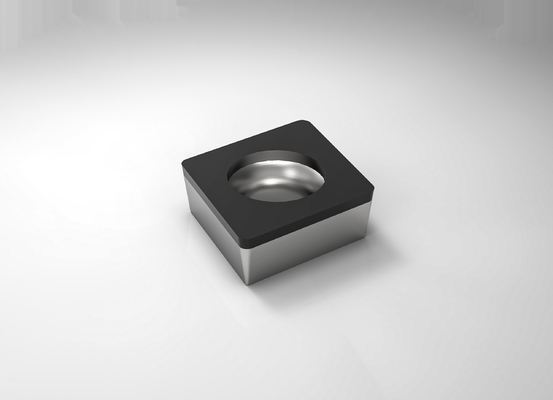

F-CCGW060204 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
In the manufacturing worldia, changes push us to promote our products and service.
We are devoted to providing you with cutting tools and solutions that match the ambitions
of your company. We want to grow up with you together.
Description:
"MANANOVA is the sub-brand of WORLDIA, positioning as a high-end standard series,
mainly promoting PCD / PCBN standard inserts.
MANANOVA takes “Easy choice and Fast delivery” as the feature.
Two factories to product at the same time, so spot delivery once orders are completed.
Welcome to inquiry to learn more information!
Material:
Poly-Crystalline Diamond (PCD)
1. Reduce your tooling cost significantly
2. For non-ferrous metal machining
Application:
| MND10 | Applied to the cutting of non-ferrous materials such as aluminum alloys, etc. |
Main products:
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-ferrous metal materials.
The four edge types are standard, chip breaker, full edge, and full face.
PCBN insert 7material/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
Especially coated PCBN insert is suitable for continuous to the heavy interrupted cutting of hardened steel
and has excellent universal performance
Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributor support
· Technical support
Specification:
| CCGW | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| CCGW 21.50.5 | CCGW 060202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| CCGW 21.51 | CCGW 060204 | 1N | 6.35 | 2.38 | 0.4 | 2.8 | 2.5 | √ |
| CCGW 32.50.5 | CCGW 09T302 | 1N | 9.525 | 3.97 | 0.2 | 4.4 | 2.5 | √ |
| CCGW 32.51 | CCGW 09T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| CCGW 32.52 | CCGW 09T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| C-CCGW 21.50.5 | C-CCGW 060202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| C-CCGW 32.51 | C-CCGW 09T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| F-CCGW 21.51 | F-CCGW 060204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 6.4 | √ |
Recommendation:
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
