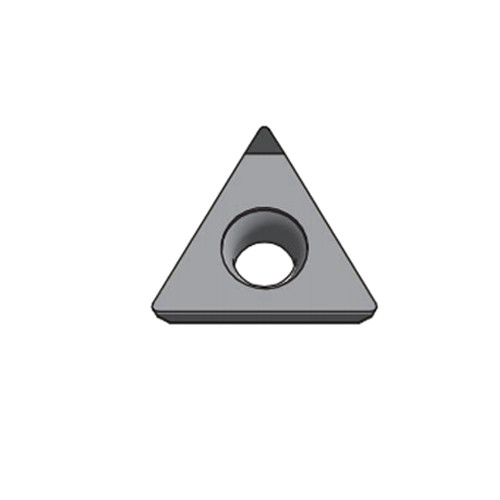

Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness

Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness
Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness

Large Image :  Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness

Product Details:
Place of Origin: Beijing
Brand Name: Worldia
Model Number: TC Type
Payment & Shipping Terms:
Delivery Time: 15days
Supply Ability: 20,000 (monthly)
Contact Now

Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness

Description
Feature: The First PCD Chip Breaker Tool Maker In China Material: Polycrystalline Diamond（PCD）
Specification: TC Type Application: Suitable For High Surface Finish Aluminum Alloys
Machining: Finishing Service: ODM/OEM
Highlight:

triangle polycrystalline diamond inserts

,

superb hardness polycrystalline diamond inserts

,

superb hardness insert pcd

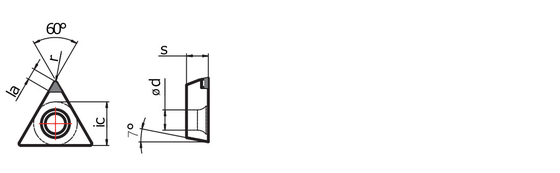

Specifications of PCD/CVDD Insert with Chip-breaker



Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness 0



      Grade       ic φd s r la
ISO catalog number ANSI catalog number Tip Shape PD01E PD10E PD32E CVDD mm mm mm mm mm
TCGW080202-1N P00P07 TCGW(1.5)(1.5)(0.5)-1N P00P07 CBCBC125S ● ● ●   4.76 2.4 2.38 0.2 2.5
TCGW080204-1N P00P07 TCGW(1.5)(1.5)1-1N P00P07 CBCBC125S ● ● ●   4.76 2.4 2.38 0.4 2.5
TCGW080202-1N P00P07 TCGW(1.5)(1.5)(0.5)-1N P00P07 SLCBC125S       ● 4.76 2.4 2.38 0.2 2.5
TCGW080204-1N P00P07 TCGW(1.5)(1.5)1-1N P00P07 SLCBC125S       ● 4.76 2.4 2.38 0.4 2.5
TCGW080202-3N P00P07 TCGW(1.5)(1.5)(0.5)-3N P00P07 CBCBC125S ● ● ●   4.76 2.4 2.38 0.2 2.5
TCGW080204-3N P00P07 TCGW(1.5)(1.5)1-3N P00P07 CBCBC125S ● ● ●   4.76 2.4 2.38 0.4 2.5
TCGW110302-1N P00P07 TCGW22(0.5)-1N P00P07 CBCBC125S ● ● ●   6.35 2.8 3.18 0.2 2.5
TCGW110304-1N P00P07 TCGW22 1-1N P00P07 CBCBC125S ● ● ●   6.35 2.8 3.18 0.4 2.5
TCGW110302-1N P00P07 TCGW22(0.5)-1N P00P07 SLCBC125S       ● 6.35 2.8 3.18 0.2 2.5
TCGW110304-1N P00P07 TCGW22 1-1N P00P07 SLCBC125S       ● 6.35 2.8 3.18 0.4 2.5
TCGW110302-3N P00P07 TCGW22(0.5)-3N P00P07 CBCBC125S ● ● ●   6.35 2.8 3.18 0.2 2.5
TCGW110304-3N P00P07 TCGW22 1-3N P00P07 CBCBC125S ● ● ●   6.35 2.8 3.18 0.4 2.5
TCGW160402-1N P00P07 TCGW33(0.5)-1N P00P07 CBCBC125S ● ● ●   9.525 4.4 4.76 0.2 2.5
TCGW160404-1N P00P07 TCGW33 1-1N P00P07 CBCBC125S ● ● ●   9.525 4.4 4.76 0.4 2.5
TCGW160408-1N P00P07 TCGW33 2-1N P00P07 CBCBC125S ● ● ●   9.525 4.4 4.76 0.8 2.5
TCGW160402-1N P00P07 TCGW33(0.5)-1N P00P07 SLCBC125S       ● 9.525 4.4 4.76 0.2 2.5
TCGW160404-1N P00P07 TCGW33 1-1N P00P07 SLCBC125S       ● 9.525 4.4 4.76 0.4 2.5
TCGW160408-1N P00P07 TCGW33 2-1N P00P07 SLCBC125S       ● 9.525 4.4 4.76 0.8 2.5
TCGW160402-3N P00P07 TCGW33(0.5)-3N P00P07 CBCBC125S ● ● ●   9.525 4.4 4.76 0.2 2.5
TCGW160404-3N P00P07 TCGW33 1-3N P00P07 CBCBC125S ● ● ●   9.525 4.4 4.76 0.4 2.5
TCGW160408-3N P00P07 TCGW33 2-3N P00P07 CBCBC125S ● ● ●   9.525 4.4 4.76 0.8 2.5
 Application of PCD chip-breaker insert



PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC),

and carbon fiber-reinforced plastics (CFRP).
PCD with flood coolant can also be used in titanium super-finishing applications.



  • Aluminum and aluminum alloys
  • Copper, brass, and bronze alloys
  • Zinc and magnesium alloys
  • Carbon Fiber
  • Epoxy resins
  • Plastics
  • Fiberglass composites
  • Graphite composites



Functions and Features of PCD chip-breaker insert

1. Eliminate bird nest chips when turning aluminum or other workpiece materials;

2. Excellent chip control is available in finish machining and general machining with the same chip pocket form;

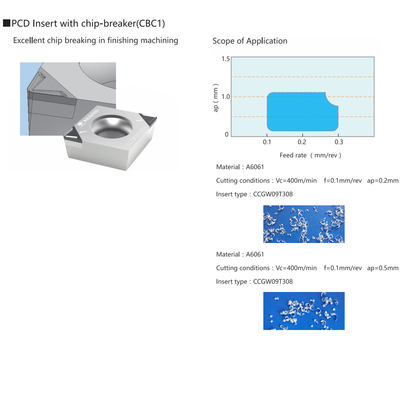

Special Focus of  PCD chip-breaker insert



Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness 1Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness 2

Material Introduction



PCD Chipbreaker Insert use premium PCD materials for the cutting tips and high quality tungsten carbide for the substrates.



Company profile

 Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness 3Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness 4
