Tp Type Worldia Cutting Tools / Pcd Cutting Inserts ODM

Tp Type Worldia Cutting Tools / Pcd Cutting Inserts ODM
Tp Type Worldia Cutting Tools / Pcd Cutting Inserts ODM Tp Type Worldia Cutting Tools / Pcd Cutting Inserts ODM Tp Type Worldia Cutting Tools / Pcd Cutting Inserts ODM

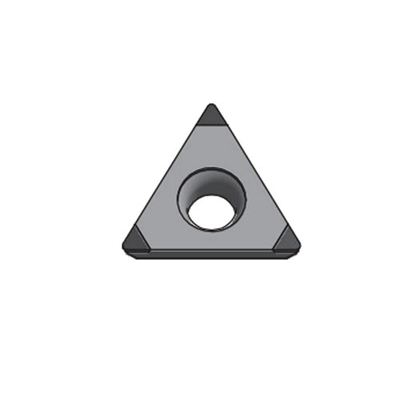

Large Image :  Tp Type Worldia Cutting Tools / Pcd Cutting Inserts ODM

Product Details:
Place of Origin: Beijing
Brand Name: Worldia
Model Number: TP Type
Payment & Shipping Terms:
Delivery Time: 15days
Supply Ability: 20,000 (monthly)
Contact Now

Tp Type Worldia Cutting Tools / Pcd Cutting Inserts ODM

Description
Feature: The First PCD Chip Breaker Tool Maker In China Material: Polycrystalline Diamond（PCD）
Specification: TP Type Application: Suitable For Non-ferrous Materials
Machining: Finishing Service: ODM/OEM
Highlight:

tp type worldia cutting tools

,

odm worldia cutting tools

,

tp type pcd cutting inserts

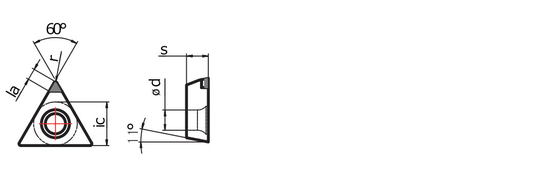

Specifications of PCD/CVDD Insert with Chip-breaker



Tp Type Worldia Cutting Tools / Pcd Cutting Inserts ODM 0









      Grade       ic φd s r la
ISO catalog number ANSI catalog number Tip Shape PD01E PD10E PD32E CVDD mm mm mm mm mm
TPGW080202-1N P00P11 TPGW(1.5)(1.5)(0.5)-1N P00P11 CBCBC125S ● ● ●   4.76 2.4 2.38 0.2 2.5
TPGW080204-1N P00P11 TPGW(1.5)(1.5)1-1N P00P11 CBCBC125S ● ● ●   4.76 2.4 2.38 0.4 2.5
TPGW080202-1N P00P11 TPGW(1.5)(1.5)(0.5)-1N P00P11 SLCBC125S       ● 4.76 2.4 2.38 0.2 2.5
TPGW080204-1N P00P11 TPGW(1.5)(1.5)1-1N P00P11 SLCBC125S       ● 4.76 2.4 2.38 0.4 2.5
TPGW080202-3N P00P11 TPGW(1.5)(1.5)(0.5)-3N P00P11 CBCBC125S ● ● ●   4.76 2.4 2.38 0.2 2.5
TPGW080204-3N P00P11 TPGW(1.5)(1.5)1-3N P00P11 CBCBC125S ● ● ●   4.76 2.4 2.38 0.4 2.5
TPGW110302-1N P00P11 TPGW22(0.5)-1N P00P11 CBCBC125S ● ● ●   6.35 3.3 3.18 0.2 2.5
TPGW110304-1N P00P11 TPGW22 1-1N P00P11 CBCBC125S ● ● ●   6.35 3.3 3.18 0.4 2.5
TPGW110302-1N P00P11 TPGW22(0.5)-1N P00P11 SLCBC125S       ● 6.35 3.3 3.18 0.2 2.5
TPGW110304-1N P00P11 TPGW22 1-1N P00P11 SLCBC125S       ● 6.35 3.3 3.18 0.4 2.5
TPGW110302-3N P00P11 TPGW22(0.5)-3N P00P11 CBCBC125S ● ● ●   6.35 3.3 3.18 0.2 2.5
TPGW110304-3N P00P11 TPGW22 1-3N P00P11 CBCBC125S ● ● ●   6.35 3.3 3.18 0.4 2.5
TPGW160402-1N P00P11 TPGW33(0.5)-1N P00P11 CBCBC125S ● ● ●   9.525 4.4 4.76 0.2 2.5
TPGW160404-1N P00P11 TPGW33 1-1N P00P11 CBCBC125S ● ● ●   9.525 4.4 4.76 0.4 2.5
TPGW160408-1N P00P11 TPGW33 2-1N P00P11 CBCBC125S ● ● ●   9.525 4.4 4.76 0.8 2.5
TPGW160402-1N P00P11 TPGW33(0.5)-1N P00P11 SLCBC125S       ● 9.525 4.4 4.76 0.2 2.5
TPGW160404-1N P00P11 TPGW33 1-1N P00P11 SLCBC125S       ● 9.525 4.4 4.76 0.4 2.5
TPGW160408-1N P00P11 TPGW33 2-1N P00P11 SLCBC125S       ● 9.525 4.4 4.76 0.8 2.5
TPGW160402-3N P00P11 TPGW33(0.5)-3N P00P11 CBCBC125S ● ● ●   9.525 4.4 4.76 0.2 2.5
TPGW160404-3N P00P11 TPGW33 1-3N P00P11 CBCBC125S ● ● ●   9.525 4.4 4.76 0.4 2.5
TPGW160408-3N P00P11 TPGW33 2-3N P00P11 CBCBC125S ● ● ●   9.525 4.4 4.76 0.8 2.



 Application of PCD chip-breaker insert



WORLDIA PCD Chipbreaker Inserts are suitable for machining aluminum alloys, copper alloys, magnesium alloys,

all nonferrous materials, composites, reinforced plastic, and materials with abrasive binders.

Eliminate bird nest chips when turning or boring, tailored to finishing or general machining operation.



Functions and Features of PCD chip-breaker insert

1. Unique 3D chip breaking pocket design, guarantee excellent chipping resistance, highly improved working efficiency;

2. Suitable for more wide cutting range with the same unique 3D chip pocket design.

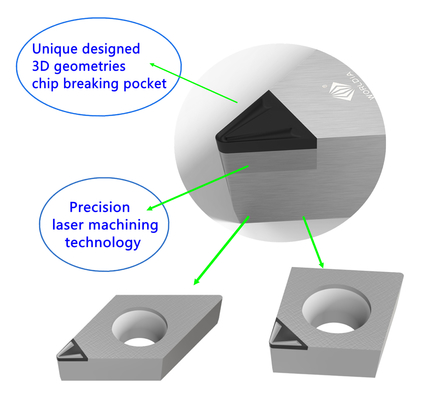

Special Focus of  PCD chip-breaker insert



Tp Type Worldia Cutting Tools / Pcd Cutting Inserts ODM 1Tp Type Worldia Cutting Tools / Pcd Cutting Inserts ODM 2

Introduction



Adopted a unique 3D chip-breaking pocket design with precision laser machining technology,

Beijing Worldia Diamond Tools issue PCD Chipbreaker Inserts to satisfy the customer that requires

a chip breaker at the actual cutting point.
