Product Details:
|
| Model Number: | L-TCGW 16T302 | Tips: | 2N |
|---|---|---|---|
| Type: | Full Length | Product Brand: | WORLDIA |
| Product Family: | ManaNova | Material: | PCD+Carbide |
| PCD Grade: | MND10 | Application: | Machining Of Non-ferrous Materials |
| Highlight: | polycrystalline diamond worldia cutting tools,non ferrous metal worldia cutting tools,worldia pcd insert |
||

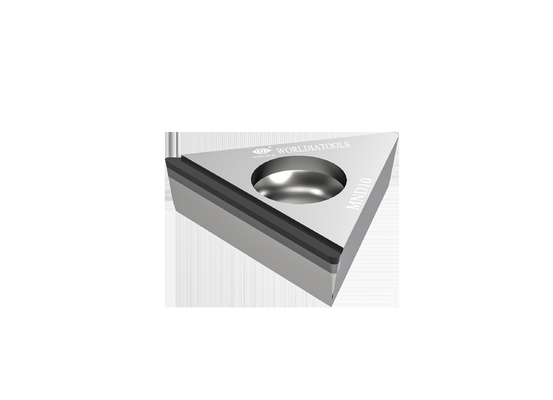

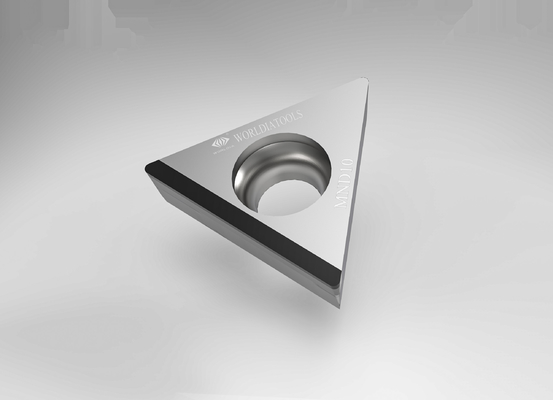

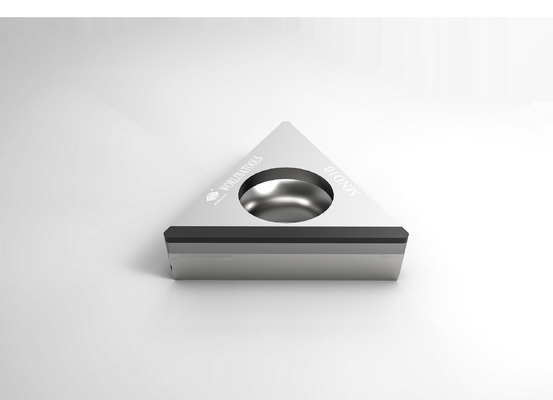

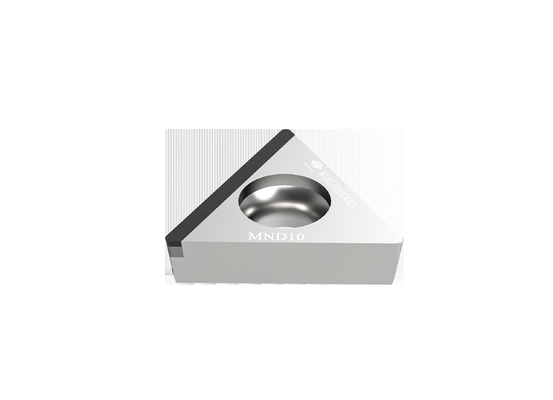

L-TCGW 16T302 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
The four edge types are standard, chip breaker, full edge, and full face.
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose
PCD and PCBN materials to provide the universal cutting effect.
The critical feature of ManaNova is Easy choice and Fast delivery.
"Easy choice": It is easy to choose according to the comparison table and application.
"Fast delivery": All the ManaNova PCD Inserts in the catalog are available in stock.
Eliminating force majeure, you can get within 4-5 days.
Material:
Polycrystalline cubic boron nitride(CBN) is a material with an excellent hot hardness that can be used at very
high cutting speeds. It also exhibits good toughness and thermal shock resistance.CBN tools are ideal for use
with hardened steel, cast irons, and sintered irons as well as powder metallurgy components.
Tools with Poly-Crystalline Diamond (PCD) cutting materials can reduce your tooling cost significantly,
PCD tools are ideal for use with non-ferrous metal, such as aluminum, Zinc, and magnesium alloys,
GRP composites, carbon fiber reinforced plastics, “green” carbide, and ceramic as well as all abrasive materials.
Main products:
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
PCBN insert is suitable for machining of hardened steel, gray cast iron, ductile iron, and powder metallurgy.
Advantages:
·High quality
·Low cost
·Factory direct supply
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TCGW 1.81.50.5 | TCGW 090202 | 1N | 5.56 | 2.38 | 0.2 | 2.4 | 2.5 | √ |
| TCGW 1.81.51 | TCGW 090204 | 1N | 5.56 | 2.38 | 0.4 | 2.4 | 2.5 | √ |
| TCGW 220.5 | TCGW 110302 | 1N | 6.35 | 3.18 | 0.2 | 2.8 | 2.5 | √ |
| TCGW 221 | TCGW 110304 | 1N | 6.35 | 3.18 | 0.4 | 2.8 | 2.5 | √ |
| TCGW 222 | TCGW 110308 | 1N | 6.35 | 3.18 | 0.8 | 2.8 | 2.5 | √ |
| TCGW 32.51 | TCGW 16T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| TCGW 32.52 | TCGW 16T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| L-TCGW 32.50.5 | L-TCGW 16T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 16.2 | √ |
| L-TCGW 32.51 | L-TCGW 16T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 15.9 | √ |
| L-TCGW 32.52 | L-TCGW 16T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 15.3 | √ |
| F-VBGW 1.81.51 | F-VBGW 090204 | 3N | 5.56 | 2.38 | 0.4 | 2.4 | 9 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
