Product Details:
|
| Model Number: | F-TPGW 160408 | Tips: | 3N |
|---|---|---|---|
| Type: | Full Face | Advantages: | ·High Quality ·Low Cost ·Factory Direct Supply |
| Product Brand: | WORLDIA | Product Family: | ManaNova |
| Material: | PCD+Carbide | PCD Grade: | MND10 |
| Application: | High Precision Of Machining Of Non-ferrous Materials | ||
| Highlight: | tpgw pcd turning inserts,zinc magnesium alloys pcd turning inserts,pcd inserts for aluminum |
||

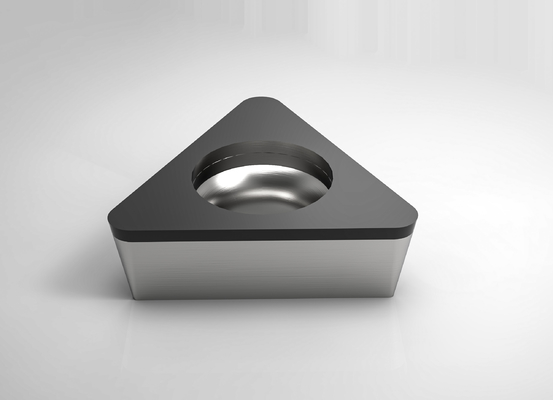

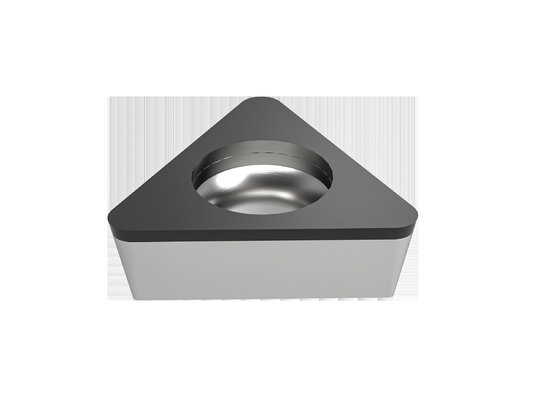

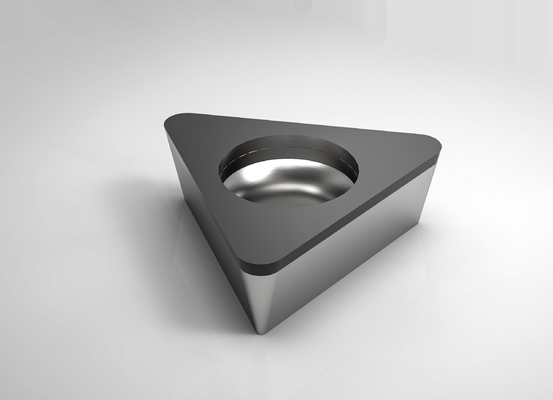

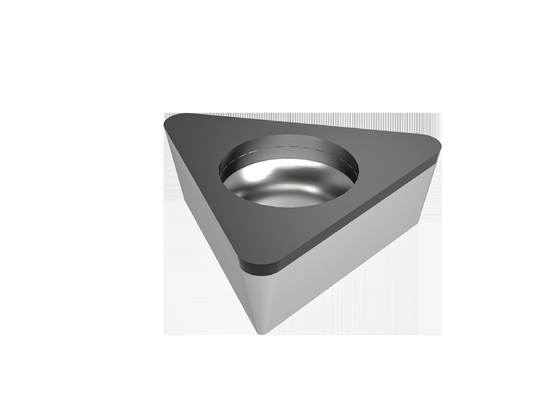

F-TPGW 160408 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
WORLDIA
With high-quality products and professional technical support, we are honored to service the top manufacturers
in automotive, new energy, wind power, engineering machinery industries, etc.
Description:
As a high-end standard cutting tool series, MANANOVA carries out the whole process of quality
management from raw materials, with sophisticated production testing equipment, professional and
experienced R&D and production team, and professional technical services, so that every user can
continue to experience Worldia cutting tools advantages.
Easy choice and Fast delivery is the feature of ManaNova.
The four edge types are standard, chip breaker, full length, and full face.
Material:
Poly-Crystalline Diamond (PCD)
1. Reduce your tooling cost significantly
2. For non-ferrous metal machining
Polycrystalline cubic boron nitride(CBN)
1. With an excellent hot hardness
2. Good toughness and thermal shock resistance.
3. For hardened steel, cast irons, sintered irons as well as powder metallurgy components machining
Main products:
We manufacture CBN tools with an industry-leading 5-axis cutting machine and self-designed vacuum
brazing furnace which keeps CBN tools with high accuracy and welding strength.
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
PCD insert: Providing stable, universal, high efficient cutting effect.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TPGW 220.5 | TPGW 110302 | 1N | 6.35 | 3.18 | 0.2 | 3.3 | 2.5 | √ |
| TPGW 221 | TPGW 110304 | 1N | 6.35 | 3.18 | 0.4 | 3.3 | 2.5 | √ |
| TPGW 222 | TPGW 110308 | 1N | 6.35 | 3.18 | 0.8 | 3.3 | 2.5 | √ |
| TPGW 330.5 | TPGW 160402 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 | √ |
| TPGW 331 | TPGW 160404 | 1N | 9.525 | 4.76 | 0.4 | 4.4 | 2.5 | √ |
| F-TPGW 222 | F-TPGW 160408 | 3N | 9.525 | 3.18 | 0.8 | 3.3 | 15.3 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
