Product Details:
|
| Model Number: | CCGW060202 | Application: | Machining Of Cast Iron |
|---|---|---|---|
| Advantages:: | · Universal · Easy Choice · Fast Delivery | Product Brand: | WORLDIA |
| Product Family: | ManaNova | Name: | PCBN Standard Insert |
| Material: | PCBN+Carbide | PCBN Grade: | MKN10/MKN20 |
| Highlight: | CCGW060202 PCBN Cutting Tools,ManaNova Carbide PCBN Cutting Tools,Polycrystalline Cubic Boron Nitride CCGW Insert |
||

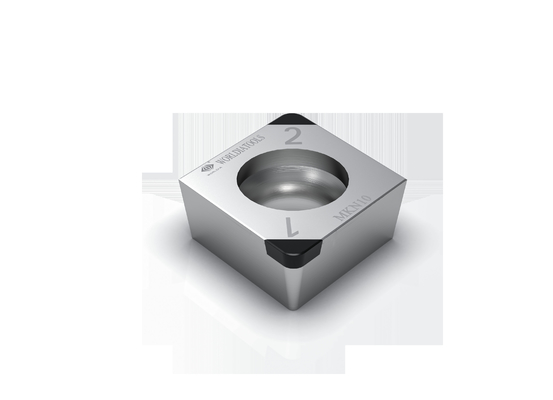

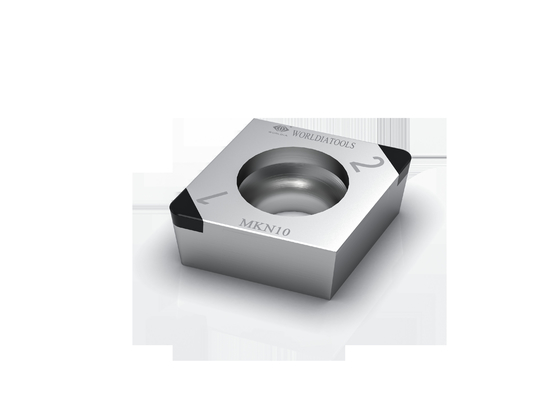

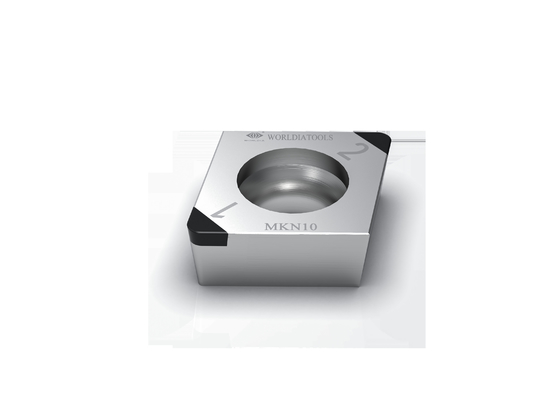

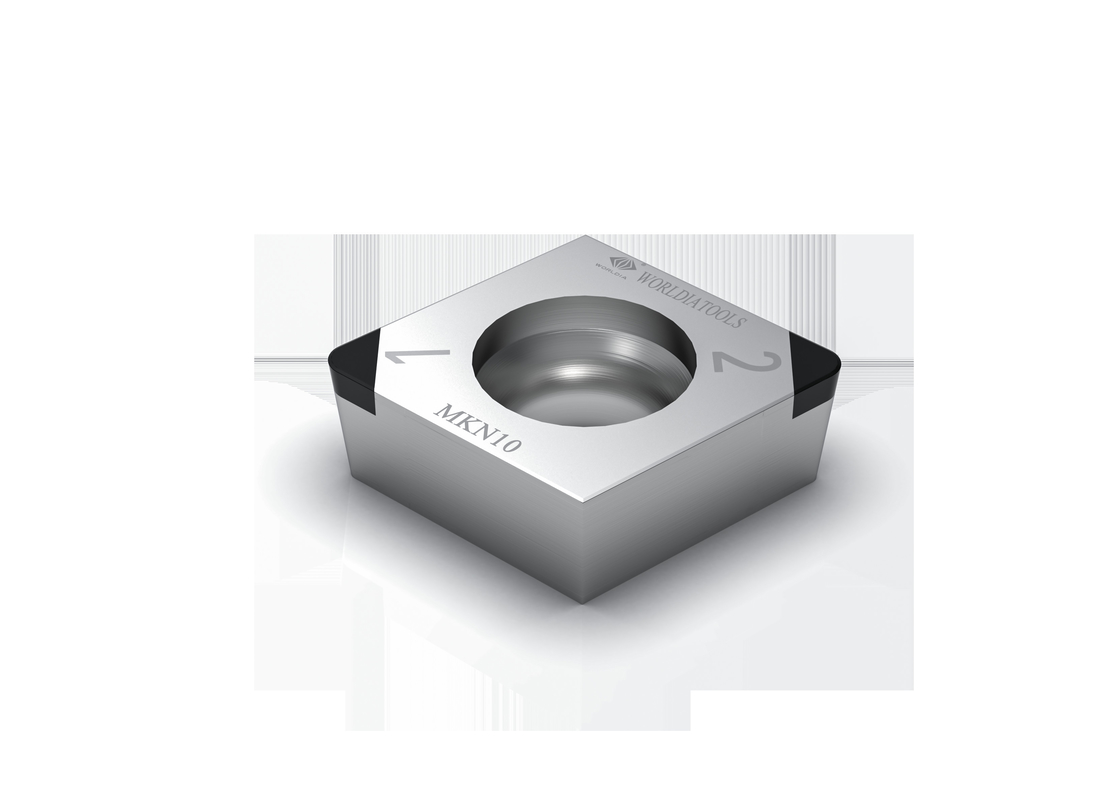

CCGW060202 Standard PCBN Carbide Turning Insert PCBN Cutting Insert for cast iron
Worldia ManaNova series covers 7 high-quality CBN grades for the processing of hardened steel,
cast iron, and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C,
MKN10, MKN20, MSN10, and MSN20.
MKNxx is used for the general processing of cast iron materials.
MKN10 is suitable for gray cast iron, and MKN20 is suitable for ductile iron.
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose PCD and PCBN materials
to provide the universal cutting effect.
The key feature of ManaNova is Easy choice and Fast delivery.
"Easy choice" is easy to choose according to the comparison table and application.
"Fast delivery" is all the ManaNova PCD Inserts in the catalog are available in stock.
Eliminating force majeure, you can get within 4-5 days.
Main products:
PCBN insert: 7material/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
PCD insert: Providing stable, universal, high efficient cutting effect.
PCD Turning Inserts can be used in many fields including the car industry, energy equipment, and the wood and stone
industry. It can be used to cut and process different materials such as nonferrous metal, tungsten carbide, ceramic,
nonmetal, and composite material.
Advantages:
·High quality
·Low cost
·Factory direct supply
Service:
· Online store service
· Local distributor support
· Technical support
Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| CCGW | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
CCGW 21.50.5 | CCGW 060202 | 2N | 6.35 | 2.38 | 0.2 | 2.8 | 2.2 |
| CCGW 21.51 | CCGW 060204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 | |
| CCGW 21.52 | CCGW 060208 | 2N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 | |
| CCGW 32.50.5 | CCGW 09T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 2.2 | |
| CCGW 32.51 | CCGW 09T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 2.2 | |
| CCGW 32.52 | CCGW 09T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 2.2 | |
| CCGW 32.53 | CCGW 09T312 | 2N | 9.525 | 3.97 | 1.2 | 4.4 | 2.2 | |
