Product Details:
|
| Model Number: | CCGW060204 | PCBN Grade: | MKN10/MKN20 |
|---|---|---|---|
| Tips: | 2N | Feature: | · Universal · Easy Choice · Fast Delivery |
| Product Brand: | WORLDIA | Product Family: | ManaNova |
| Material: | PCBN+Carbide | Application: | Machining Of Cast Iron |
| Highlight: | CCGW PCBN Carbide Turning Insert,CCGW060204 Carbide Turning Insert,PCBN Insert For Hardened Steel |
||

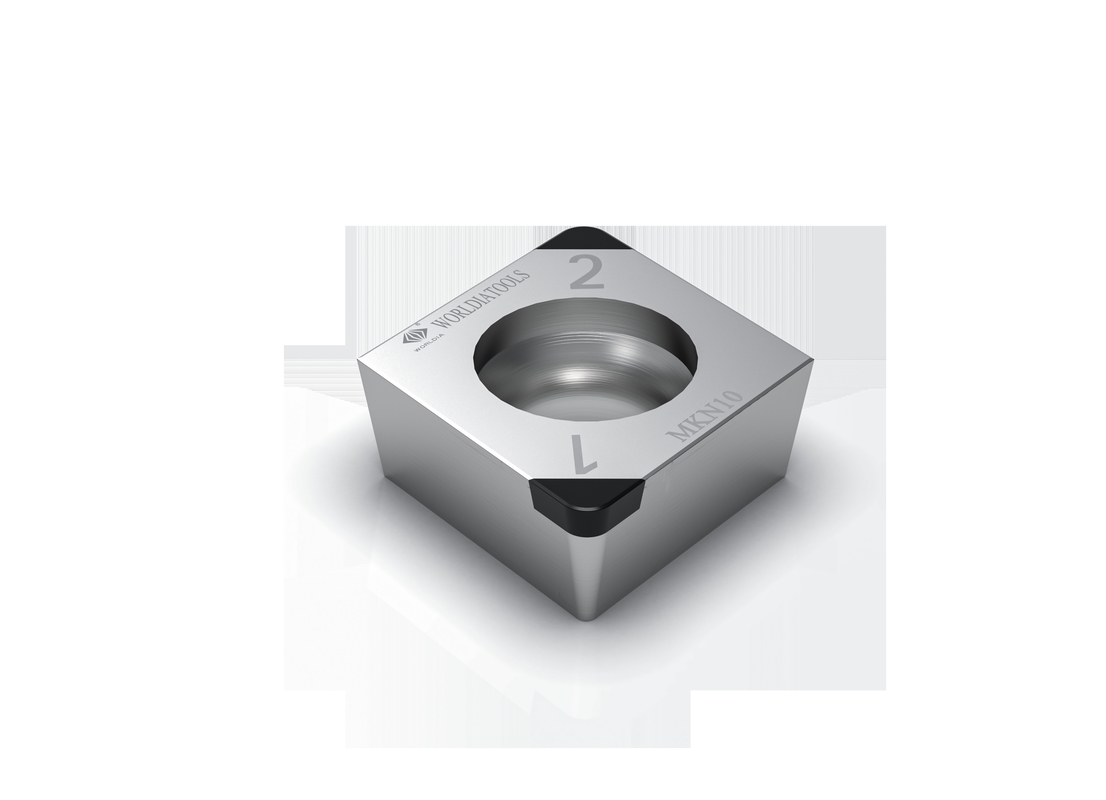

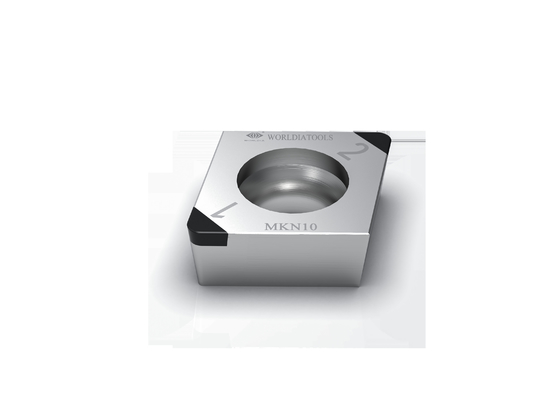

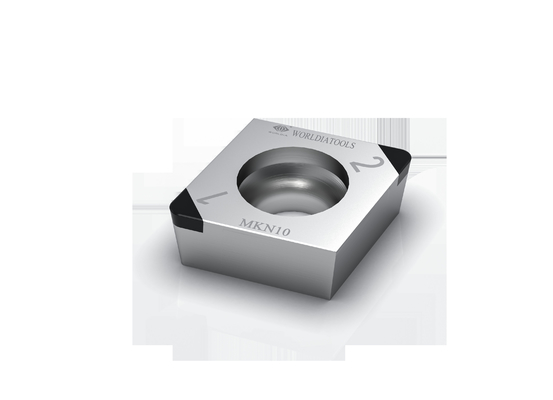

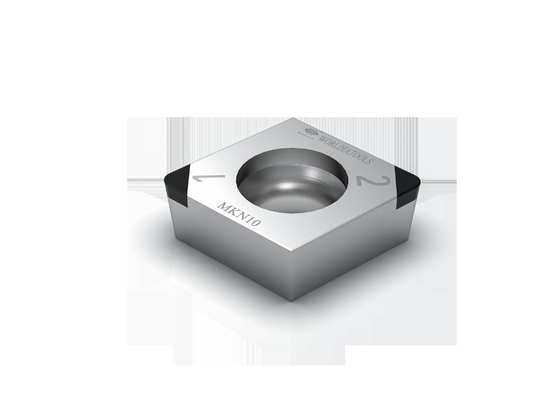

CCGW060202 Standard PCBN Carbide Turning Insert PCBN Cutting Insert for cast iron
Worldia ManaNova series covers 7 high-quality CBN grades for the processing of hardened steel,
cast iron, and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C,
MKN10, MKN20, MSN10, and MSN20.
MKNxx is used for the general processing of cast iron materials.
MKN10 is suitable for gray cast iron, and MKN20 is suitable for ductile iron.
Description:
ManaNova, a sub-brand of Worldia, is positioned as a high-end standard series.
To meet the needs of customers as the goal, we strictly select PCD/PCBN materials to provide a universal,
stable, and efficient cutting effect.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to
provide fast and efficient service for domestic and foreign customers to meet their
demand for standardized and universalized tools.
Main products:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Advantages:
· Universal
· Easy choice
· Fast delivery
Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| CCGW | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
CCGW 21.50.5 | CCGW 060202 | 2N | 6.35 | 2.38 | 0.2 | 2.8 | 2.2 |
| CCGW 21.51 | CCGW 060204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 | |
| CCGW 21.52 | CCGW 060208 | 2N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 | |
| CCGW 32.50.5 | CCGW 09T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 2.2 | |
| CCGW 32.51 | CCGW 09T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 2.2 | |
| CCGW 32.52 | CCGW 09T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 2.2 | |
| CCGW 32.53 | CCGW 09T312 | 2N | 9.525 | 3.97 | 1.2 | 4.4 | 2.2 | |
