Product Details:
|
| Model Number: | CCGW 09T302 | PCBN Grade: | MKN10/MKN20 |
|---|---|---|---|
| Coting: | No Coated | Service: | Online Store Service · Local Distributor Support · Technical Support |
| Product Brand: | WORLDIA | Product Family: | ManaNova |
| Material: | PCBN+Carbide | Application: | High Precision Of Machining Of Cast Iron |
| Highlight: | CCGW09T302 carbide cutting inserts,No Coated PCBN Carbide Cutting Inserts,CCGW Inserts For Powder Metallurgy |
||

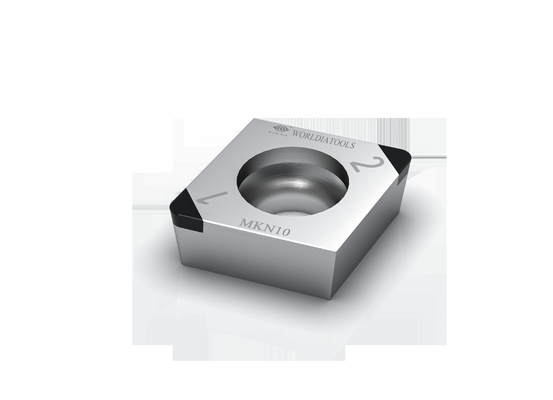

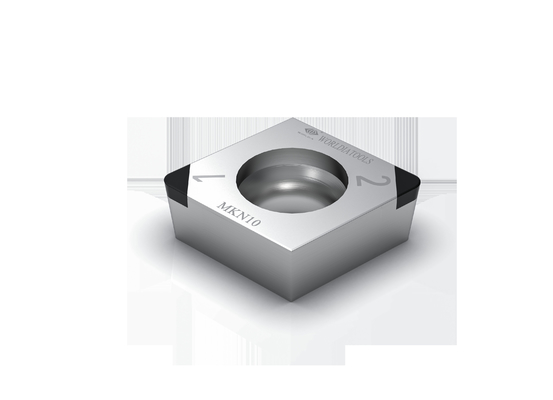

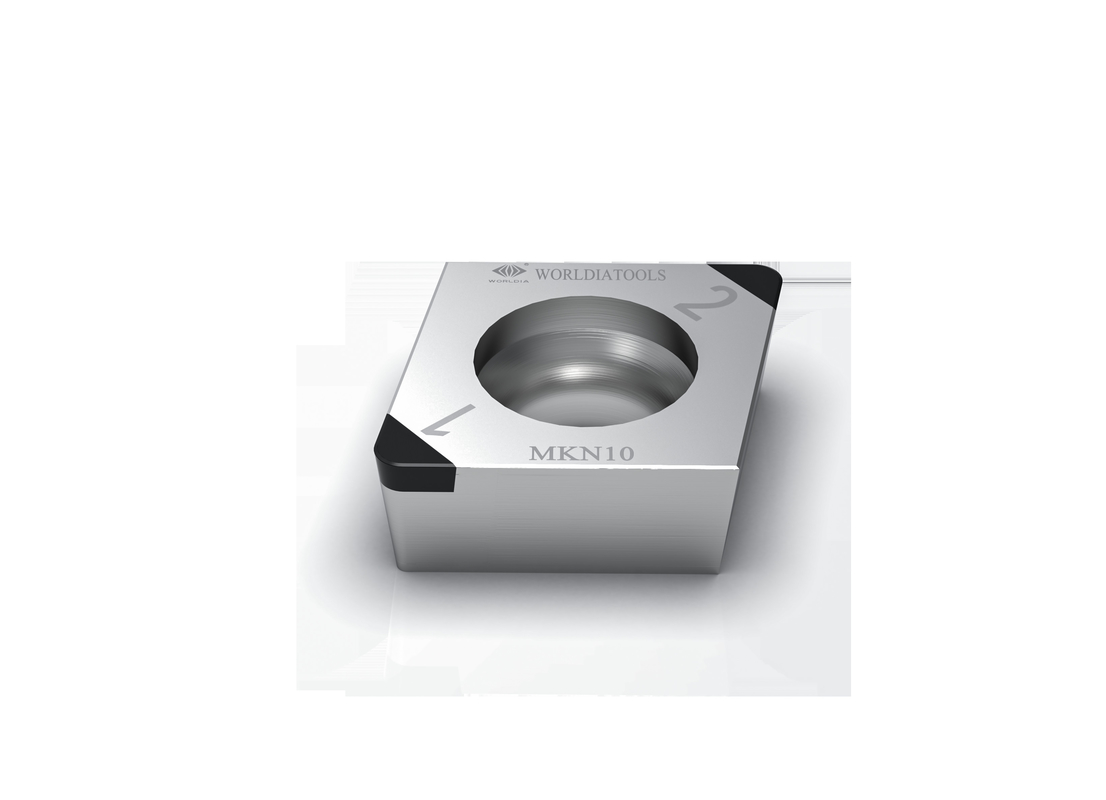

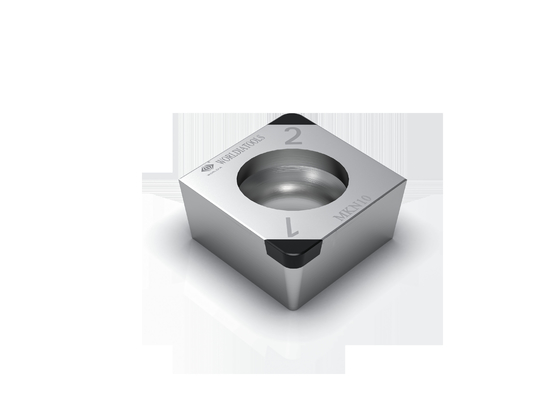

CCGW060202 Standard PCBN Carbide Turning Insert PCBN Cutting Insert for cast iron
WORLDIA
With high-quality products and professional technical support, we are honored to service the top
manufacturers in automotive, new energy, wind power, engineering machinery industries, etc.
Description:
As a high-end standard cutting tool series, MANANOVA carries out the whole process of quality
management from raw materials, with sophisticated production testing equipment, professional and
experienced R&D and production team, and professional technical services, so that every user can
continue to experience Worldia cutting tools advantages.
“Easy choice and Fast delivery” is the feature of ManaNova
Main products:
“Seven materials/ one type” namely each specification corresponding to seven materials
(MHN10C ,MHN20C ,MHN30C, MKN10,MKN20,MSN 10)is the feature of the PCBN insert.
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
The PCD insert can provide a stable, universal, high efficient cutting effect.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Advantages:
·High quality
·Low cost
·Factory direct supply
Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| CCGW | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
CCGW 21.50.5 | CCGW 060202 | 2N | 6.35 | 2.38 | 0.2 | 2.8 | 2.2 |
| CCGW 21.51 | CCGW 060204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 | |
| CCGW 21.52 | CCGW 060208 | 2N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 | |
| CCGW 32.50.5 | CCGW 09T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 2.2 | |
| CCGW 32.51 | CCGW 09T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 2.2 | |
| CCGW 32.52 | CCGW 09T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 2.2 | |
| CCGW 32.53 | CCGW 09T312 | 2N | 9.525 | 3.97 | 1.2 | 4.4 | 2.2 | |
