Product Details:
|
| Application: | High-precision Machining Of Cast Iron | PCBN Grade: | MKN10/20 |
|---|---|---|---|
| Model Number: | CNGA120404 | Product Brand: | WORLDIA |
| Product Family: | ManaNova | Name: | PCBN Standard Insert |
| Usage: | Turning Tools | Material: | PCBN+Carbide |
| High Light: | PCBN Carbide Insert Lathe Tools,CNGA120404 Carbide Insert Lathe Tools,CNGA WORLDIA Cutting Tools |
||

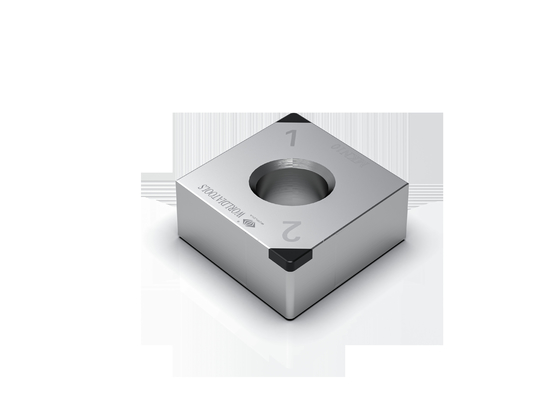

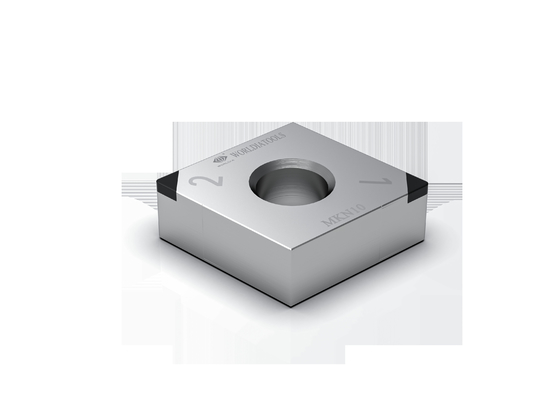

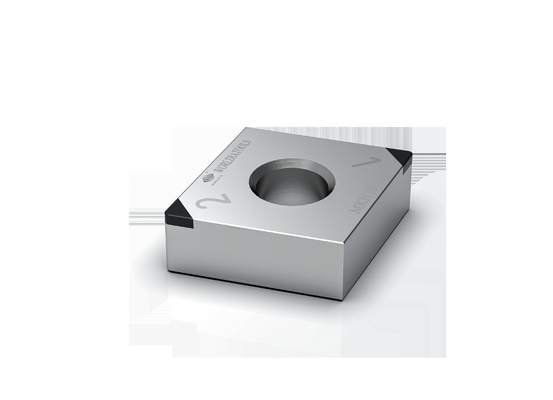

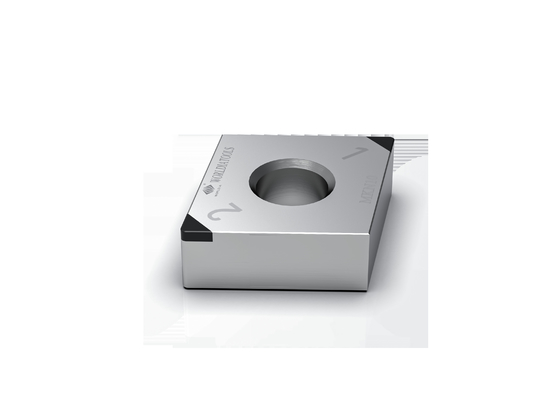

CNGA 120404 Standard PCBN Carbide Turning Insert PCBN Cutting Insert for cast iron
PCBN Cutting Insert Description:
PCBN (Polycrystalline Cubic Boron Nitride) insert is a cutting tool insert made from a synthetic material that is very hard and wear-resistant.
It is used in machining operations to cut and shape hard and abrasive materials such as hardened steel, cast iron, and powder metallurgy.
PCBN Insert for cast iron processing: MANANOVA Standard Portfolio
Main products: PCD insert& PCBN Insert
PCBN insert is universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
PCD insert can be used in many fields including the car industry, energy equipment, and the wood and stone
industry. It can be used to cut and process different materials such as nonferrous metal, tungsten carbide, ceramic,
nonmetal, and composite materials.
PCBN Cutting Insert Application:
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
PCBN Insert Advantages:
·High quality
·Low cost
·Factory direct supply
PCBN Insert Service:
· Online store service
· Local distributor support
· Technical support
PCBN Insert Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| CNGA | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
CNGA 431 | CNGA 120404 | 2N | 12.7 | 4.76 | 0.4 | 5.16 | 2.2 |
| CNGA 432 | CNGA 120408 | 2N | 12.7 | 4.76 | 0.8 | 5.16 | 2.2 | |
| CNGA 432 | CNGA 120408 | 4N | 12.7 | 4.76 | 0.8 | 5.16 | 2.2 | |
