Product Details:
|
| Model Number: | CNGA120408 | Application: | Machining Of Cast Iron |
|---|---|---|---|
| Tips: | 2/4N | PCBN Grade: | MKN10/20 |
| Product Brand: | WORLDIA | Product Family: | ManaNova |
| Name: | PCBN Standard Insert | Material: | PCBN+Carbide |
| Highlight: | CNGA120408 PCBN Cutting Tools,4N Tips PCBN Cutting Tools,PCBN carbide inserts for metal cutting |
||

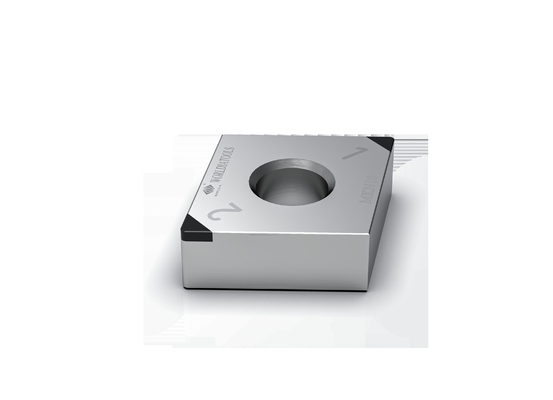

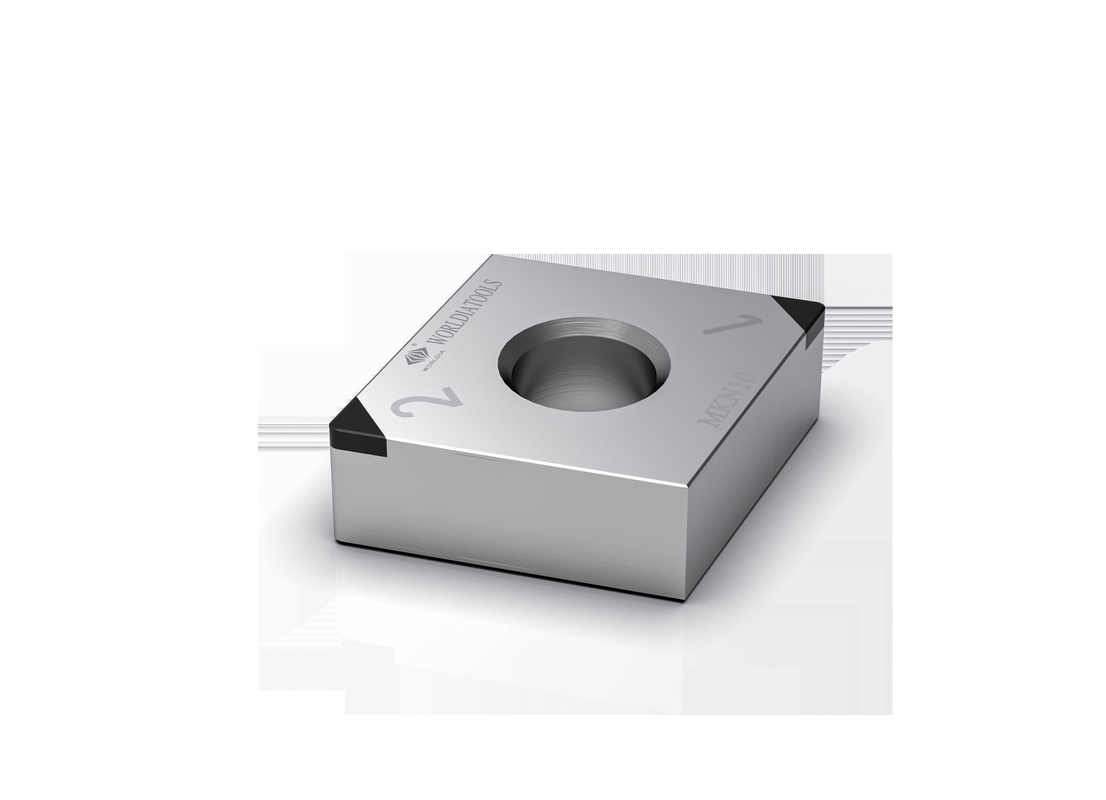

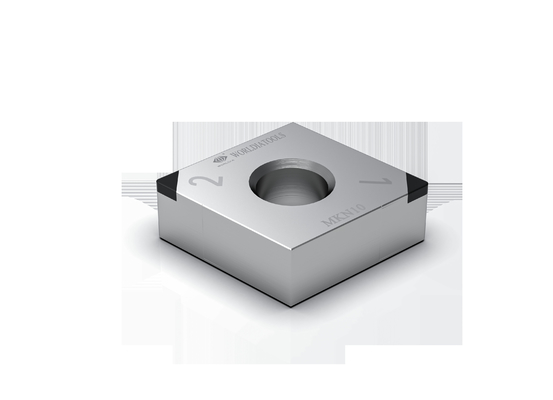

CNGA 120408 Standard PCBN Carbide Turning Insert PCBN Cutting Insert for cast iron
Application:
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
Description:
As a high-end standard cutting tool series, MANANOVA carries out the whole process of quality
management from raw materials, with sophisticated production testing equipment, professional and
experienced R&D and production team, and professional technical services, so that every user can
continue to experience Worldia cutting tools advantages.
Main products:
“Seven material/ one type” namely each specification corresponding to seven materials
(MHN10C ,MHN20C ,MHN30C, MKN10,MKN20,MSN 10)is the feature of the PCBN insert.
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
The four edge types of PCD insert are standard, chip breaker, full length, and full face.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Service:
· Online store service
· Local distributor support
· Technical support
Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| CNGA | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
CNGA 431 | CNGA 120404 | 2N | 12.7 | 4.76 | 0.4 | 5.16 | 2.2 |
| CNGA 432 | CNGA 120408 | 2N | 12.7 | 4.76 | 0.8 | 5.16 | 2.2 | |
| CNGA 432 | CNGA 120408 | 4N | 12.7 | 4.76 | 0.8 | 5.16 | 2.2 | |
