Product Details:
|
| Product Name: | PCD Mirco Drills | Series: | WZ2 Series |
|---|---|---|---|
| Application: | Composite Ceramic Wear Resistant Material | Specification: | D1*L2*SD3.175*L*α |
| Machining: | Utral-mirco Ф0.2-Ф2mm | Machinng Case: | Zirconia Processing Case Ф0.451mm |
| Highlight: | composite ceramic pcd micro drill,high hardness pcd drill bit,polymerize crystal diamond pcd micro drill |
||

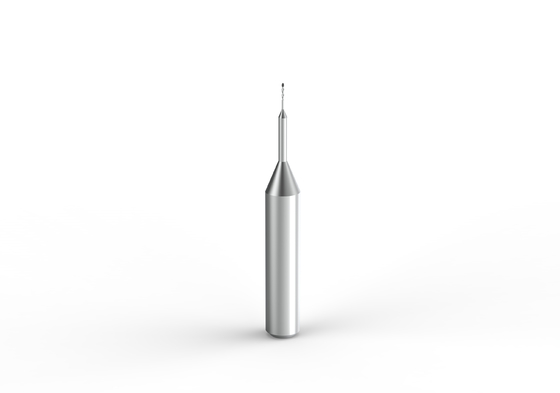

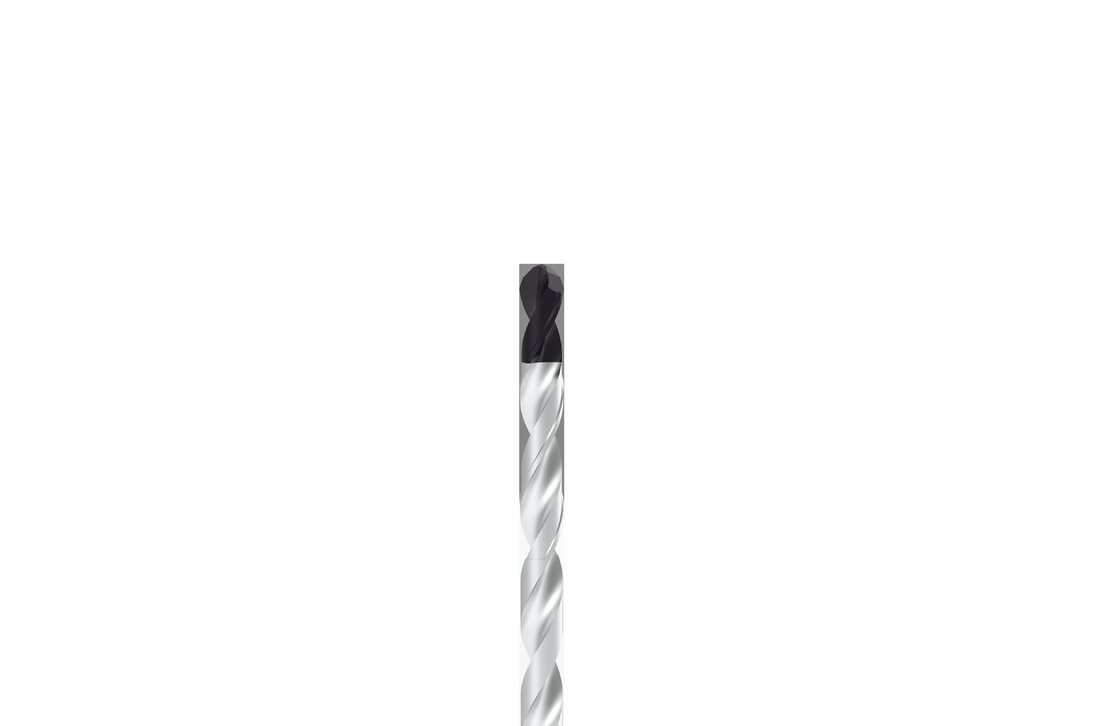

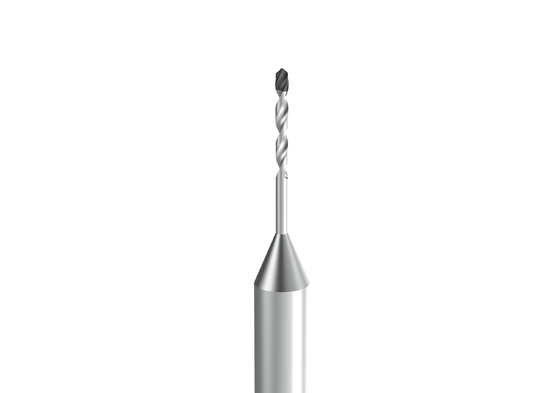

Composite Ceramic Pcd Micro Drill Bit High Hardness
Worldia is among the very few manufacturers to produce micro PCD tools.
The machining is carried out utilizing highly sophisticated technology to achieve a very accurate and fine cutting edge.
The PCD micro drills, ranging from 0.1mm, are used for instance in semiconductors for drilling very tough materials like
monocrystalline silicon and Quartz.
| PCD Mirco drill Specification Selection Table | ||||||||
| Series | Specification | d1(mm) | L2(mm) | maximum diameter | D2 | L | α | Application |
| WZ2 | d1*L2*SD3.175*L*α | 0.4-≤0.8 | 4~13.5 | 20 | 3.175 | 38/45 | 110°-130° | Composite ceramic wear-resistant material |
| 0.8-<2.0 | ||||||||
Accept non-standard customization!
| Diameter range | 0.3-3.0mm |
| Maximum diameter | 0.1-0.2mm-----30 |
| Maximum drilling depth | 0.7-3.0mm-----19mm |
|
|
|
|
|
|
|
|
|
|
|
