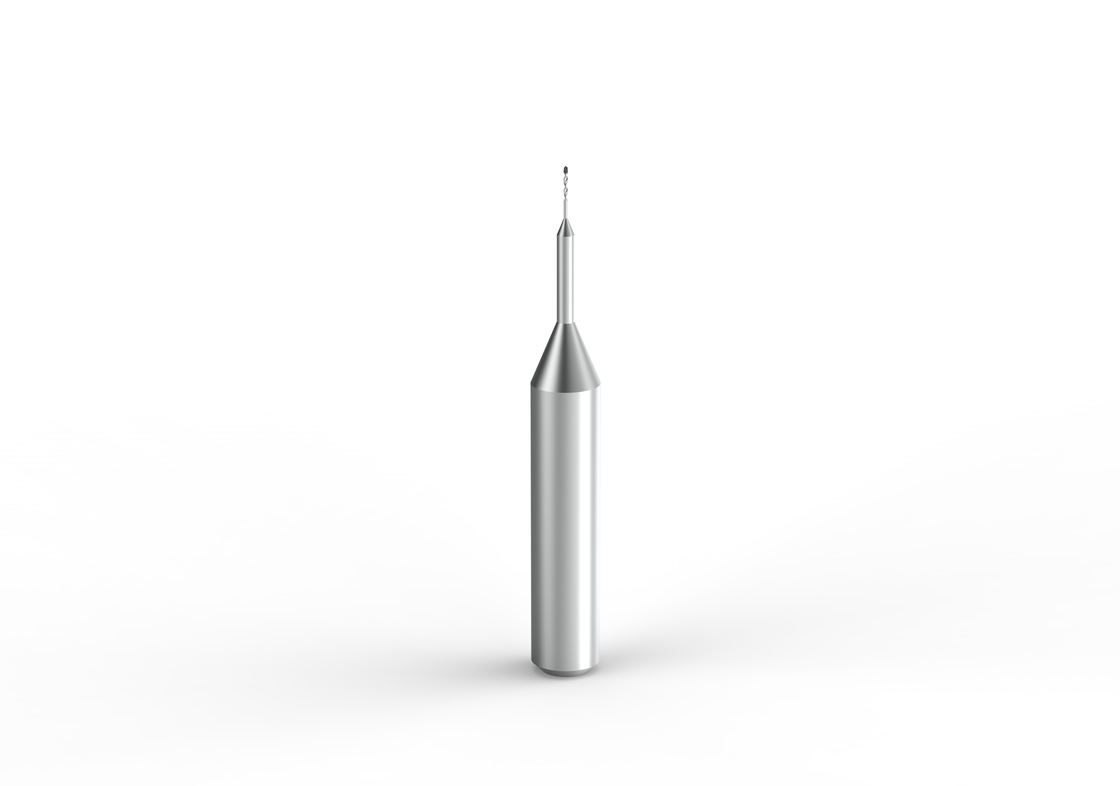

Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon

Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon
Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon
Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon

Large Image :  Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon

Product Details:
Place of Origin: Jiaxing，China
Brand Name: Worldia
Model Number: d1*L2*SD3.175*L*α
Contact Now

Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon

Description
Product Name: PCD Mirco Drills Application: Monocrystalline Silicon，polysilicon
Customized: Support Series: WZ3 Series
Specification: D1*L2*SD3.175*L*α Machining: Utral-mirco Ф0.2-Ф2mm
Highlight:

wear resistance pcd drilling tool

,

monocrystalline silicon pcd drilling tool

,

polysilicon pcd drill bit



PCD (Poly Crystalline Diamond) is a synthetic diamond made of sintered diamond powder and other metals.

Worldia is among the very few manufacturers to produce micro PCD tools.



PCD Micro Drill SPECIFICATION



PCD Mirco drill Specification Selection Table
Series Specification d1(mm) L2(mm) maximum diameter D2 L α Application
WZ3 d1*L2*SD3.175*L*α 0.2-≤0.35 2~4 38 3.175 38/45 110°-130° Monocrystalline silicon,polysilicon
0.35-≤0.75 7~13.5
Remarks Non-standard PCD Mirco Drill can be customized!

Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon 0

PCD Micro Drill Features





  • 1. Micro PCD Drills & Tools are new technology allowing achievement of superb surface finish in Machining very hard materials in the Dental, Electronics, and D&M industries.



  • 2. PCD micro drill is widely used in addition to processing metal materials, can also be used for inorganic non-metallic material processing, with high processing precision



  • 3.  PCD Mirco protects the bits from abrasion and wears when drilling steel, stainless steel, and heat-resistant alloys.

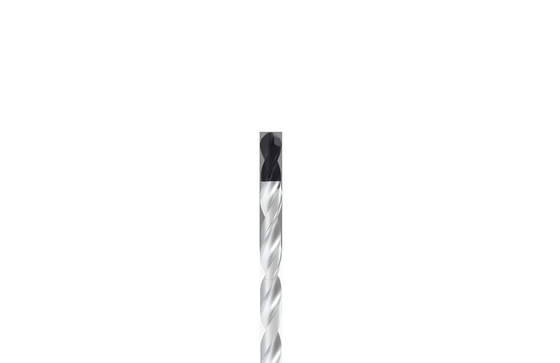

PCD Micro Drill Slot Structure and Drill Tip



  • 1. PCD micro drill ranges from 0.2mm



  • 2. The PCD micro Utral-Mirco is Ф0.2-Ф2mm

 Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon 1Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon 2Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon 3



PCD Micro Drill Category and Application Field



Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon 4

PCD Micro Drill Processing Case



  • single-crystal silicon machining case
 Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon 5



PCD Micro Drill Patent Certificate



Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon 6
