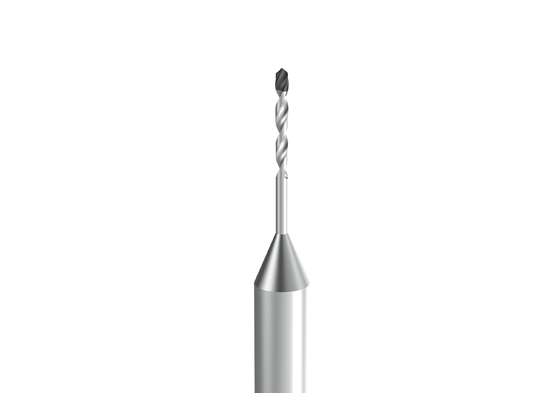

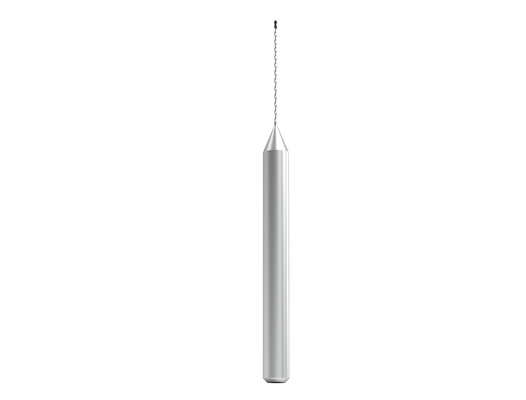

0.4-2.0 Mm Pcd Micro Drill Composite Ceramic High Hardness Ultra-Micro ф0.2-ф2mm

0.4-2.0 Mm Pcd Micro Drill Composite Ceramic High Hardness Ultra-Micro ф0.2-ф2mm
0.4-2.0 Mm Pcd Micro Drill Composite Ceramic High Hardness Ultra-Micro ф0.2-ф2mm
0.4-2.0 Mm Pcd Micro Drill Composite Ceramic High Hardness Ultra-Micro ф0.2-ф2mm 0.4-2.0 Mm Pcd Micro Drill Composite Ceramic High Hardness Ultra-Micro ф0.2-ф2mm 0.4-2.0 Mm Pcd Micro Drill Composite Ceramic High Hardness Ultra-Micro ф0.2-ф2mm

Large Image :  0.4-2.0 Mm Pcd Micro Drill Composite Ceramic High Hardness Ultra-Micro ф0.2-ф2mm

Product Details:
Place of Origin: Jiaxing，China
Brand Name: Worldia
Model Number: d1*L2*SD3.175*L*α
Contact Now

0.4-2.0 Mm Pcd Micro Drill Composite Ceramic High Hardness Ultra-Micro ф0.2-ф2mm

Description
Product Name: PCD Mirco Drills Series: WZ2 Series
Application: Composite Ceramic Wear Resistant Material Specification: D1*L2*SD3.175*L*α
Machining: Utral-mirco Ф0.2-Ф2mm Machinng Case: Zirconia Processing Case Ф0.451mm
Highlight:

0.4mm pcd micro drill

,

high hardness pcd micro drill

,

2mm pcd drill bit

Composite Ceramic Pcd Micro Drill Bit High Hardness



PCD Micro Drill Description



Item Name PCD Micro Drill
Material PCD
Diameter 0.4mm-2.0mm
Application Composite ceramic processing



PCD Micro Drill SPECIFICATION



PCD Mirco drill Specification Selection Table
Series Specification d1(mm) L2(mm) maximum diameter D2 L α Application
WZ2 d1*L2*SD3.175*L*α 0.4-≤0.8 4~13.5 20 3.175 38/45 110°-130° Composite ceramic wear-resistant material
0.8-<2.0



                                             Accept non-standard customization!





PCD Micro Drill Features





  • 1. PCD micro drill has fine cutting edges characteristics of high hardness, wear resistance, and relatively long service life compared with traditional alloy microdrill;



  • 2. PCD micro drill is designed with superb surface quality and edge sharpness.



  • 3. PCD micro drills create precise holes with a smooth finish and often eliminate the need for reaming the hole after drilling.




PCD Micro Drill Slot Structure and Drill Tip





  • 1. The PCD micro drills, ranging from 0.4mm, are used for instance in semiconductors for drilling very tough materials
  • 2. PCD micro drill bits provide excellent hardness, wear resistance, and heat resistance.
  • 3. The top rotates stably and the hole position is accurate.



0.4-2.0 Mm Pcd Micro Drill Composite Ceramic High Hardness Ultra-Micro ф0.2-ф2mm 0



PCD Micro Drill Category and Application Field



0.4-2.0 Mm Pcd Micro Drill Composite Ceramic High Hardness Ultra-Micro ф0.2-ф2mm 1

  • Worldia is among the very few manufacturers to produce micro PCD tools, which are used in Semiconductor Industry, Defense Field, Aerospace, Communication Electronics, Automotive Electronics, and High-end Medical fields
  •
  • The machining is carried out utilizing highly sophisticated technology to achieve a very accurate and fine cutting edge.
PCD Micro Drill Processing Case



0.4-2.0 Mm Pcd Micro Drill Composite Ceramic High Hardness Ultra-Micro ф0.2-ф2mm 2


PCD Micro Drill Patent Certificate



0.4-2.0 Mm Pcd Micro Drill Composite Ceramic High Hardness Ultra-Micro ф0.2-ф2mm 3
