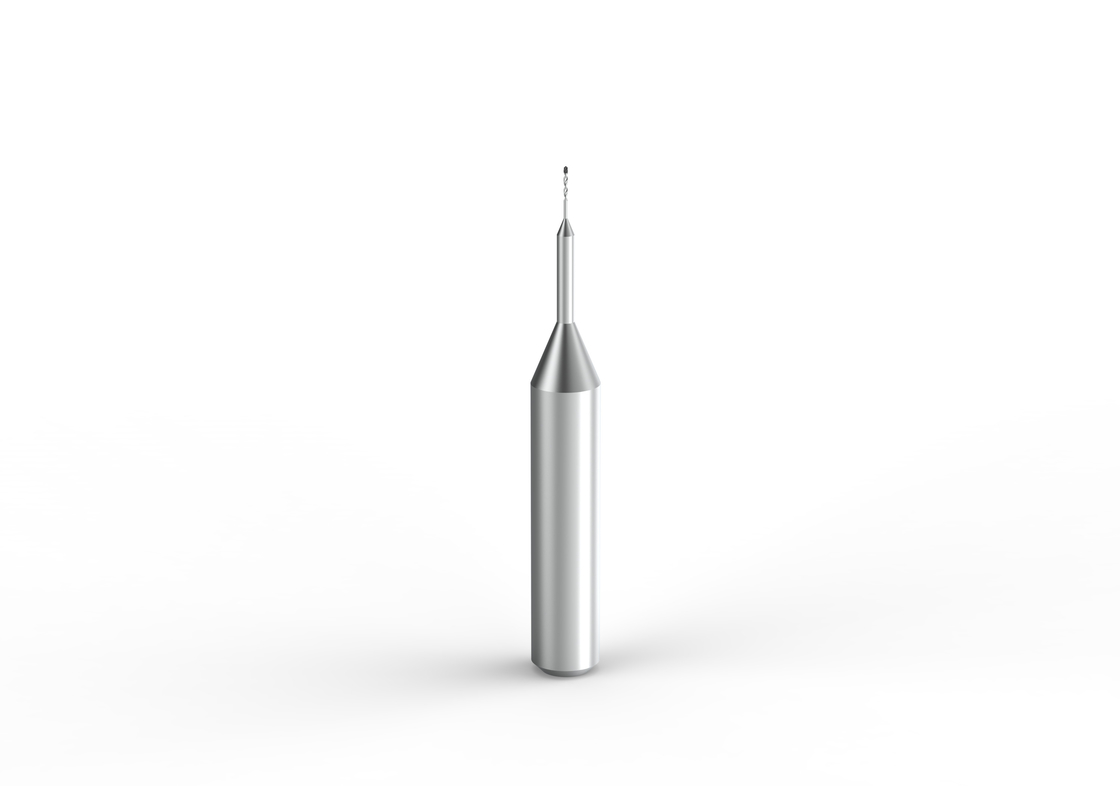

Poly Crystalline Diamond Wz3 Series Pcd Drill 0.2-0.75mm

Poly Crystalline Diamond Wz3 Series Pcd Drill 0.2-0.75mm
Poly Crystalline Diamond Wz3 Series Pcd Drill 0.2-0.75mm
Poly Crystalline Diamond Wz3 Series Pcd Drill 0.2-0.75mm Poly Crystalline Diamond Wz3 Series Pcd Drill 0.2-0.75mm Poly Crystalline Diamond Wz3 Series Pcd Drill 0.2-0.75mm

Large Image :  Poly Crystalline Diamond Wz3 Series Pcd Drill 0.2-0.75mm

Product Details:
Place of Origin: Jiaxing，China
Brand Name: Worldia
Model Number: d1*L2*SD3.175*L*α
Contact Now

Poly Crystalline Diamond Wz3 Series Pcd Drill 0.2-0.75mm

Description
Product Name: PCD Mirco Drills Series: WZ3 Series
D1: 0.2-0.75mm Application: Monocrystalline Silicon，polysilicon
Specification: D1*L2*SD3.175*L*α Machining: Utral-mirco Ф0.2-Ф2mm
Highlight:

poly crystalline diamond pcd drill

,

0.2mm pcd drill

,

0.75mm pcd drilling tool



PCD Mirco Drill Introduction



PCD (Poly Crystalline Diamond) is a synthetic diamond made of sintered diamond powder and other metals.

Micro PCD drills (WZ3 Series)are used in the semiconductor industry for monocrystalline applications.

Worldia PCD Micro Drills are processed and shaped by highly complex laser technology to achieve precise

and fine cutting edges without burn burrs.



PCD Micro Drill SPECIFICATION



PCD Mirco drill Specification Selection Table
Series Specification d1(mm) L2(mm) maximum diameter D2 L α Application
WZ3 d1*L2*SD3.175*L*α 0.2-≤0.35 2~4 38 3.175 38/45 110°-130° Monocrystalline Silicon / Polysilicon
0.35-≤0.75 7~13.5
Remarks Non-standard PCD Mirco Drill can be customized!



PCD Micro Drill Features





  • 1. PCD micro drill with high-quality accuracy & surface finish



  • 2. PCD micro drill with Utral-mirco Ф0.2-Ф2mm



  • 3.  The high technology to manufacture micro PCD drills.

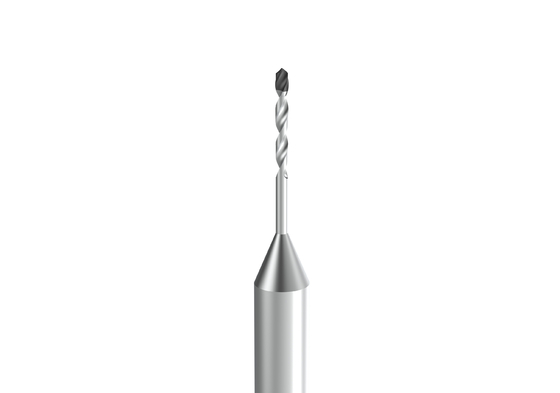

PCD Micro Drill Slot Structure and Drill Tip



  • 1. PCD micro drill designed with superb surface quality and edge sharpness.
  • 2. The PCD micro drill edge surface is polished and the main edge is sharp;
  • 3. The PCD micro drills, ranging from 0.4mm, are used for instance in semiconductors for drilling very tough materials like monocrystalline silicon and Quartz.







PCD Micro Drill Category



Poly Crystalline Diamond Wz3 Series Pcd Drill 0.2-0.75mm 0



PCD Micro Drill Processing Case



Poly Crystalline Diamond Wz3 Series Pcd Drill 0.2-0.75mm 1





PCD Micro Drill Patent Certificate



Poly Crystalline Diamond Wz3 Series Pcd Drill 0.2-0.75mm 2



About Us



Poly Crystalline Diamond Wz3 Series Pcd Drill 0.2-0.75mm 3

Tag:

polysilicon pcd drill bit,

monocrystalline silicon pcd drilling tool,

wear resistance pcd drilling tool
