Product Details:
|
| Features: | High Hardness, Wear Resistance, And Relatively Long Service Life | Product Name: | PCD Mirco Drills |
|---|---|---|---|
| Series: | WZ1 Series | Material: | PCD |
| Machining: | Utral-mirco Ф0.2-Ф2mm | Application: | Graphite，polymer Wear-resisting Material，aluminum Alloy And Other Non-ferrous Materials |
| Field: | Semiconductor And Other High-precision Industries | Diameter: | 0.4mm-2.0mm |
| Highlight: | customized pcd micro drill,micro hole pcd micro drill,graphite drilling pcd tipped drills |
||

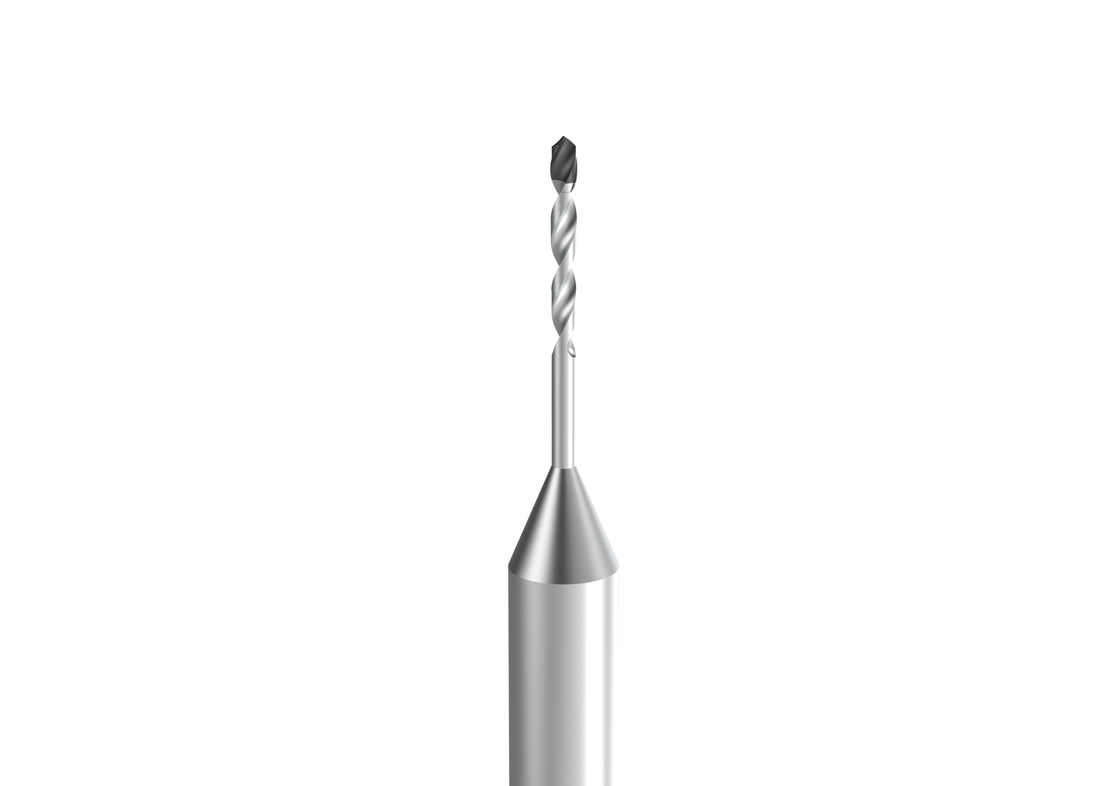

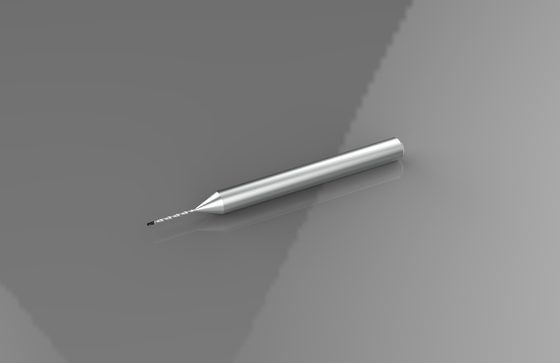

Customized PCD Tools Micro Hole Pcd Tipped Drills Bit Tools For Graphite Drilling
The PCD micro drills, ranging from 0.1mm, are used for instance for drilling very tough materials like
Graphite, polymer wear-resisting material, aluminum alloy, and other non-ferrous materials.
| PCD Mirco drill Specification Selection Table | ||||||||
| Series | Specification | d1(mm) | L2(mm) | maximum diameter | D2 | L | α | Application |
| WZ1 | d1*L2*SD3.175*L*α | 0.2-≤0.4 | 2~6 | 32 | 3.175 | 38/45 | 110°-130° | Graphite, polymer wear-resisting material. aluminum allow and other non-ferrous metals |
| 0.4-≤0.8 | 4~13.5 | |||||||
| 0.8-<2.0 | ||||||||
Non-standard products can be customized!
| Diameter range | 0.1-1.5mm |
| 0.1-0.2mm | Maximum diameter:15 |
| 0.25-0.6mm | Maximum diameter:30 |
| 0.65-1.5mm | Maximum limit length:19 |
Micro PCD Drill is a critical solution for Semiconductor and other high-precision industries
that use composite and very hard materials, our Micro Drills allow unprecedented precision with
extremely long tool life which enables high-yield works to run uninterrupted for longer times and
without potential damage to expensive parts.
|
|
|
|
