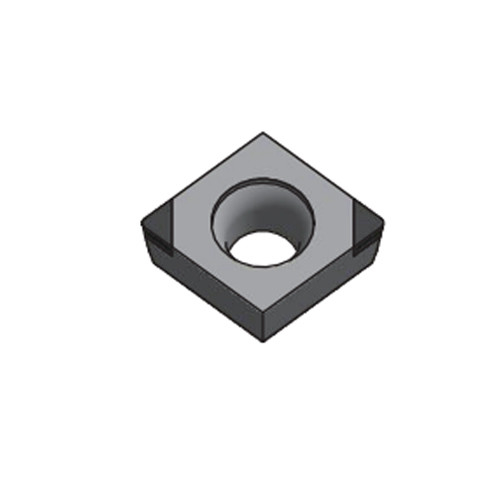

No Coating Worldia Cutting Tools For Non Ferrous Materials Machining

No Coating Worldia Cutting Tools For Non Ferrous Materials Machining
No Coating Worldia Cutting Tools For Non Ferrous Materials Machining No Coating Worldia Cutting Tools For Non Ferrous Materials Machining No Coating Worldia Cutting Tools For Non Ferrous Materials Machining No Coating Worldia Cutting Tools For Non Ferrous Materials Machining

Large Image :  No Coating Worldia Cutting Tools For Non Ferrous Materials Machining

Product Details:
Place of Origin: Beijing
Brand Name: Worldia
Model Number: CC Type
Payment & Shipping Terms:
Delivery Time: 15days
Supply Ability: 20,000 (monthly)
Contact Now

No Coating Worldia Cutting Tools For Non Ferrous Materials Machining

Description
Material: Polycrystalline Diamond（PCD） Specification: CC Type
Usage: Non-ferrous Metal Application: For Machining Excellent Surface With High Roughness In High Efficiency;
Service: ODM/OEM Coating: No Coating
Product Name: PCD WIPER INSERT
Highlight:

no coating worldia cutting tools

,

oem worldia cutting tools

,

non ferrous machining pcd diamond insert



Description of PCD Insert



The Worldia PCD insert is distinguished for high hardness, high compressive strength,

large thermal conductivity, and good wear resistance.



It operates with high processing accuracy and large efficiency at high speed.



We have  standard PCD Insert, PCD Chip-breaker Insert, PCD Wiper Insert, PCD Full-length edge Chip-breaker,

PCD Full Length edge Insert, PCD Full Face Insert, and so on.

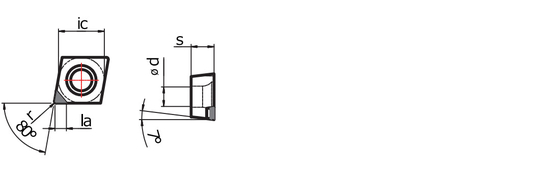

Specifications of PCD/CVDD Wiper Insert



No Coating Worldia Cutting Tools For Non Ferrous Materials Machining 0

      Grade       ic φd s r la
ISO catalog number ANSI catalog number Tip Shape PD01E PD10E PD32E CVDD mm mm mm mm mm
CCGW060202-1N P00P07 CCGW2(1.5)(0.5)-1N P00P07 CBWG25S ● ● ●   6.35 2.8 2.38 0.2 2.5
CCGW060204-1N P00P07 CCGW2(1.5)1-1N P00P07 CBWG25S ● ● ●   6.35 2.8 2.38 0.4 2.5
CCGW060202-1N P00P07 CCGW2(1.5)(0.5)-1N P00P07 SLWG25S       ● 6.35 2.8 2.38 0.2 2.5
CCGW060204-1N P00P07 CCGW2(1.5)1-1N P00P07 SLWG25S       ● 6.35 2.8 2.38 0.4 2.5
CCGW060202-2N P00P07 CCGW2(1.5)(0.5)-2N P00P07 CBWG25S ● ● ●   6.35 2.8 2.38 0.2 2.5
CCGW060204-2N P00P07 CCGW2(1.5)1-2N P00P07 CBWG25S ● ● ●   6.35 2.8 2.38 0.4 2.5
CCGW09T302-1N P00P07 CCGW3(2.5)(0.5)-1N P00P07 CBWG25S ● ● ●   9.525 4.4 3.97 0.2 2.5
CCGW09T304-1N P00P07 CCGW3(2.5)1-1N P00P07 CBWG25S ● ● ●   9.525 4.4 3.97 0.4 2.5
CCGW09T308-1N P00P07 CCGW3(2.5)2-1N P00P07 CBWG25S ● ● ●   9.525 4.4 3.97 0.8 2.5
CCGW09T302-1N P00P07 CCGW3(2.5)(0.5)-1N P00P07 SLWG25S       ● 9.525 4.4 3.97 0.2 2.5
CCGW09T304-1N P00P07 CCGW3(2.5)1-1N P00P07 SLWG25S       ● 9.525 4.4 3.97 0.4 2.5
CCGW09T308-1N P00P07 CCGW3(2.5)2-1N P00P07 SLWG25S       ● 9.525 4.4 3.97 0.8 2.5
CCGW09T302-2N P00P07 CCGW3(2.5)(0.5)-2N P00P07 CBWG25S ● ● ●   9.525 4.4 3.97 0.2 2.5
CCGW09T304-2N P00P07 CCGW3(2.5)1-2N P00P07 CBWG25S ● ● ●   9.525 4.4 3.97 0.4 2.5
CCGW060208-2N P00P07 CCGW3(2.5)2-2N P10P07 CBWG25S ● ● ●   9.525 4.4 3.97 0.8 2.5
CCGW120402-1N P00P07 CCGW43(0.5)-1N P00P07 CBWG25S ● ● ●   12.7 5.5 4.76 0.2 2.5
CCGW120404-1N P00P07 CCGW43 1-1N P00P07 CBWG25S ● ● ●   12.7 5.5 4.76 0.4 2.5
CCGW120408-1N P00P07 CCGW43 2-1N P00P07 CBWG25S ● ● ●   12.7 5.5 4.76 0.8 2.5
CCGW120402-1N P00P07 CCGW43(0.5)-1N P00P07 SLWG25S       ● 12.7 5.5 4.76 0.2 2.5
CCGW120404-1N P00P07 CCGW43 1-1N P00P07 SLWG25S       ● 12.7 5.5 4.76 0.4 2.5
CCGW120408-1N P00P07 CCGW43 2-1N P00P07 SLWG25S       ● 12.7 5.5 4.76 0.8 2.5
CCGW120402-2N P00P07 CCGW43(0.5)-2N P00P07 CBWG25S ● ● ●   12.7 5.5 4.76 0.2 2.5
CCGW120404-2N P00P07 CCGW43 1-2N P00P07 CBWG25S ● ● ●   12.7 5.5 4.76 0.4 2.5
CCGW120408-2N P00P07 CCGW43 2-2N P10P07 CBWG25S ● ● ●   12.7 5.5 4.76 0.8 2.5





 Application of PCD Wiper Insert



WORLDIA PCD Wiper Turning Inserts are suitable for excellent surfaces

with high roughness and high-efficiency machining.



Improve the quality of the workpiece surface or processing efficiency.



Focus of  PCD Wiper Insert



No Coating Worldia Cutting Tools For Non Ferrous Materials Machining 1



Company profile

 No Coating Worldia Cutting Tools For Non Ferrous Materials Machining 2No Coating Worldia Cutting Tools For Non Ferrous Materials Machining 3



    Grade       ic φd s r la
ISO catalog number ANSI catalog number Tip Shape PD01E PD10E PD32E CVDD mm mm mm mm mm
CCGW060202-1N P00P07 CCGW2(1.5)(0.5)-1N P00P07 CBWG25S ● ● ●   6.35 2.8 2.38 0.2 2.5
CCGW060204-1N P00P07 CCGW2(1.5)1-1N P00P07 CBWG25S ● ● ●   6.35 2.8 2.38 0.4 2.5
CCGW060202-1N P00P07 CCGW2(1.5)(0.5)-1N P00P07 SLWG25S       ● 6.35 2.8 2.38 0.2 2.5
CCGW060204-1N P00P07 CCGW2(1.5)1-1N P00P07 SLWG25S       ● 6.35 2.8 2.38 0.4 2.5
CCGW060202-2N P00P07 CCGW2(1.5)(0.5)-2N P00P07 CBWG25S ● ● ●   6.35 2.8 2.38 0.2 2.5
CCGW060204-2N P00P07 CCGW2(1.5)1-2N P00P07 CBWG25S ● ● ●   6.35 2.8 2.38 0.4 2.5
CCGW09T302-1N P00P07 CCGW3(2.5)(0.5)-1N P00P07 CBWG25S ● ● ●   9.525 4.4 3.97 0.2 2.5
CCGW09T304-1N P00P07 CCGW3(2.5)1-1N P00P07 CBWG25S ● ● ●   9.525 4.4 3.97 0.4 2.5
CCGW09T308-1N P00P07 CCGW3(2.5)2-1N P00P07 CBWG25S ● ● ●   9.525 4.4 3.97 0.8 2.5
CCGW09T302-1N P00P07 CCGW3(2.5)(0.5)-1N P00P07 SLWG25S       ● 9.525 4.4 3.97 0.2 2.5
CCGW09T304-1N P00P07 CCGW3(2.5)1-1N P00P07 SLWG25S       ● 9.525 4.4 3.97 0.4 2.5
CCGW09T308-1N P00P07 CCGW3(2.5)2-1N P00P07 SLWG25S       ● 9.525 4.4 3.97 0.8 2.5
CCGW09T302-2N P00P07 CCGW3(2.5)(0.5)-2N P00P07 CBWG25S ● ● ●   9.525 4.4 3.97 0.2 2.5
CCGW09T304-2N P00P07 CCGW3(2.5)1-2N P00P07 CBWG25S ● ● ●   9.525 4.4 3.97 0.4 2.5
CCGW060208-2N P00P07 CCGW3(2.5)2-2N P10P07 CBWG25S ● ● ●   9.525 4.4 3.97 0.8 2.5
CCGW120402-1N P00P07 CCGW43(0.5)-1N P00P07 CBWG25S ● ● ●   12.7 5.5 4.76 0.2 2.5
CCGW120404-1N P00P07 CCGW43 1-1N P00P07 CBWG25S ● ● ●   12.7 5.5 4.76 0.4 2.5
CCGW120408-1N P00P07 CCGW43 2-1N P00P07 CBWG25S ● ● ●   12.7 5.5 4.76 0.8 2.5
CCGW120402-1N P00P07 CCGW43(0.5)-1N P00P07 SLWG25S       ● 12.7 5.5 4.76 0.2 2.5
CCGW120404-1N P00P07 CCGW43 1-1N P00P07 SLWG25S       ● 12.7 5.5 4.76 0.4 2.5
CCGW120408-1N P00P07 CCGW43 2-1N P00P07 SLWG25S       ● 12.7 5.5 4.76 0.8 2.5
CCGW120402-2N P00P07 CCGW43(0.5)-2N P00P07 CBWG25S ● ● ●   12.7 5.5 4.76 0.2 2.5
CCGW120404-2N P00P07 CCGW43 1-2N P00P07 CBWG25S ● ● ●   12.7 5.5 4.76 0.4 2.5
CCGW120408-2N P00P07 CCGW43 2-2N P10P07 CBWG25S ● ● ●   12.7 5.5 4.76 0.8 2.5

Tag:

Carbide Inserts For Zinc Magnesium Alloys,

3N Tips PCD Cutting Inserts,

Triangle PCD Cutting Inserts
