Product Details:
|
| Material: | Polycrystalline Diamond（PCD） | Application: | Suitable For High Surface Finish Requirements |
|---|---|---|---|
| Service: | ODM/OEM | Customized: | Support |
| Type: | Full Length | Name: | Non Ferrous Materials Worldia Cutting Tools , Pcd Insert |
| Highlight: | non ferrous materials worldia cutting tools,non ferrous materials pcd insert,worldia cutting pcd insert |
||
The Worldia PCD insert is distinguished for high hardness, high compressive strength,
large thermal conductivity, and good wear resistance.
It operates with high processing accuracy and large efficiency at high speed.
We have standard PCD Insert, PCD Chip-breaker Insert, PCD Wiper Insert, PCD Full-length edge Chip-breaker,
PCD Full Length edge Insert, PCD Full Face Insert, and so on.
| Grade | ||||
| Type | PD01E | PD10E | PD32E | CVDD |
| TCGW | ● | ● | ● | ● |
| TPGN | ● | ● | ● | ● |
| TCMW | ● | ● | ● | ● |
| TPGT | ● | ● | ● | ● |
| CPGT | ● | ● | ● | ● |
| WOGX | ● | ● | ● | ● |
| TCGT | ● | ● | ● | ● |
| CNMA | ● | ● | ● | ● |
| SPMW | ● | ● | ● | ● |
| DNMA | ● | ● | ● | ● |
| TPUN | ● | ● | ● | ● |
| SPHW | ● | ● | ● | ● |
| SPGT | ● | ● | ● | ● |
| VCGW | ● | ● | ● | ● |
| CCGW | ● | ● | ● | ● |
| Other Customized | ● | ● | ● | ● |

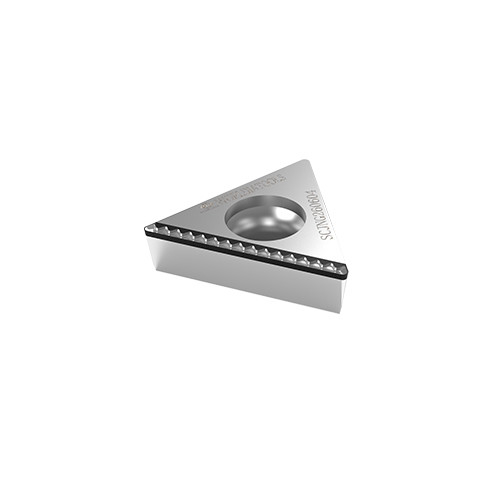

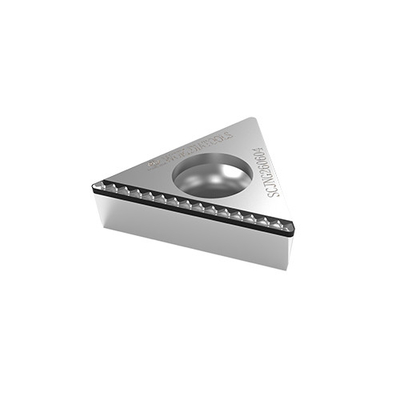

WORLDIA PCD Full Length Cheap-breaker Inserts are suitable for Chamfering,
flat surface, and bulge part cutting.
According to the grain size and features of a diamond,
four types of materials.e.PD 01EPD10EPD32E CVDD listed below.
| Material | Grain size | Features | Application |
| PD01E | 1 | PD01E fine grain size PCD material(1μm) is suitable for finishing applications. Its high impact resistance and high abrasive resistance is no less than that of the rough grade of PCD. | PD01E has excellent chip resistance and is suitable for roughing and interrupt-cutting aluminum alloys. This grade is also commonly used for non-ferrous finishing applications. Other successful applications include the machining of wood and MDF. |
| PD10E | 10 | PD10E is the universal grade in the market. It`s the first choice for many applications where a good balance of toughness and wear resistance is required. | This Grade is commonly used for non-ferrous finishing applications. Other successful applications include the machining of wood and MDF.The machining of low-medium content silicon aluminum alloys, carbide, hard rubber, graphite, and so on. |
| PD32E | 2-30 | PD32E has a unique combination of wear resistance, edge strength, and edge quality. It contains a carefully sorted mix of micron diamonds (Between 2 - 30 μm). Combining these particle sizes and a specifically developed high-pressure sintering process produces a structure with extreme abrasion resistance and good thermal stability. | Application areas include the machining of abrasive workpieces such as MMC, and high silicon aluminum alloys as well as the machining of carbide, hard rubber, graphite and other applications. |
| CVDD | - | CVDD is a pure carbon material without binder with extreme abrasion resistance and suitable thermal suitability. Due to its perfect cutting edge suitable for applications where mirror finishes are required. | Application areas include the machining of abrasive workpieces such as MMC, and high silicon aluminum alloys as well as the machining of carbide, hard rubber, graphite, and other applications. |
